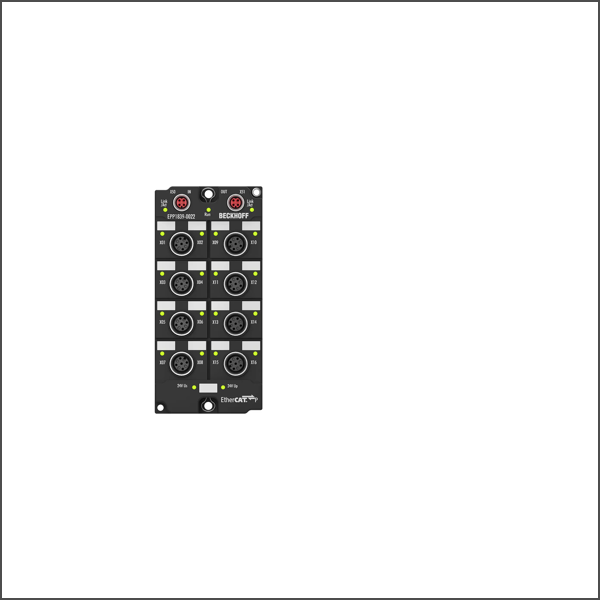

EPP1839-0022 EtherCAT P Box
SKU: EPP1839-0022
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP1839-0022 EtherCAT P Box module with 16 digital inputs acquires binary control signals from the process level and transmits them to the controller with electrical isolation. The signal status is indicated by means of LEDs, and the signal connection is made via screw-type M12 connectors. Wire break detection can be activated or deactivated for each channel. The signal input filters are individually adjustable.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Specification: EN 61131-2, type 1/3
Number of inputs: 16
Input connections: M12, screw type
Nominal input voltage: 24 V DC (-15 %/+20 %)
Input filter: adjustable 0…100 ms
“0” signal voltage: -3…+5 V (EN 61131-2, type 3)
“1” signal voltage: 11…30 V (EN 61131-2, type 3)
Input current: typ. 3 mA (EN 61131-2, type 3)
Distributed clocks: yes
Sensor supply: from control voltage, max. 0.5 A per M12 socket, short-circuit proof, diagnostics
Current consumption from US: typ. 100 mA
Diagnostics: open-circuit detection, undervoltage
Electrical isolation: 500 V
Weight: approx. 250 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, (UL in preparation)
