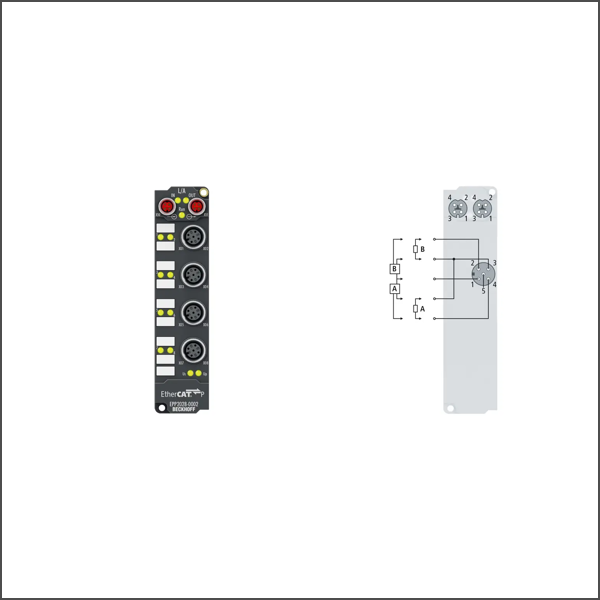

EPP2028-0002 EtherCAT P Box
SKU: EPP2028-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP2028-0002 EtherCAT P Box is designed for processing digital/binary signals. It connects the binary control signals from the automation device on to the actuators at the process level. The outputs can handle output currents up to 2.0 A max.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Number of outputs: 8
Output connections: M12, screw type
Load type: ohmic, inductive, lamp load
Nominal output voltage: 24 V DC (-15 %/+20 %)
Max. output current: 2 A per channel, individually short-circuit proof, ∑ 3 A
Switching times: typ. TON: 200 µs, typ. TOFF: 200 µs
Short-circuit current: typ. 15 A
Current consumption from US: typ. 100 mA
Auxiliary power current: typ. 20 mA + load
Electrical isolation: 500 V
Weight: approx. 165 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
