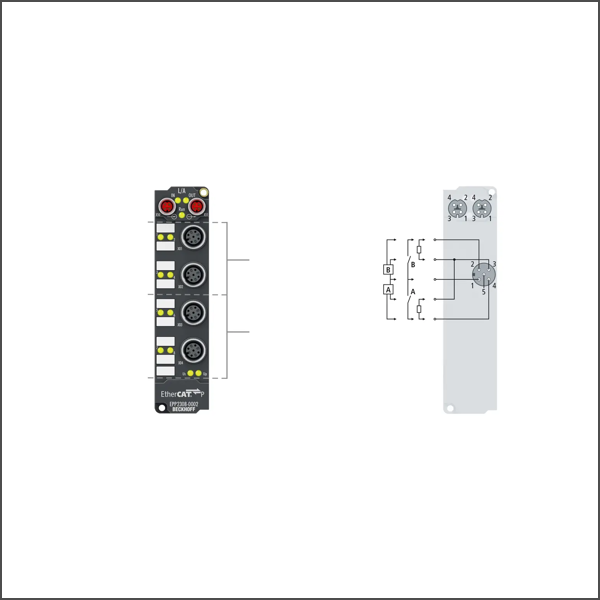

EPP2308-0002 EtherCAT P Box

Protocol: EtherCAT Bus interface: 2 x M8 socket, shielded, screw type, P-coded Specification: EN 61131-2, type 1/3 Number of channels: 4 inputs + 4 outputs Input/output connections: M12, screw type Input filter: 3.0 ms “0” signal voltage: -3…+5 V “1” signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 3) Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total Load type: ohmic, inductive, lamp load Rated load voltage: 24 V DC (-15 %/+20 %) Max. output current: 0.5 A Switching times: typ. TON: 50 µs, typ. TOFF: 100 µs Short-circuit current: typ. 1.5 A Auxiliary power current: typ. 20 mA per channel Current consumption from US: typ. 100 mA Weight: approx. 165 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Approvals/markings: CE, UL Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
