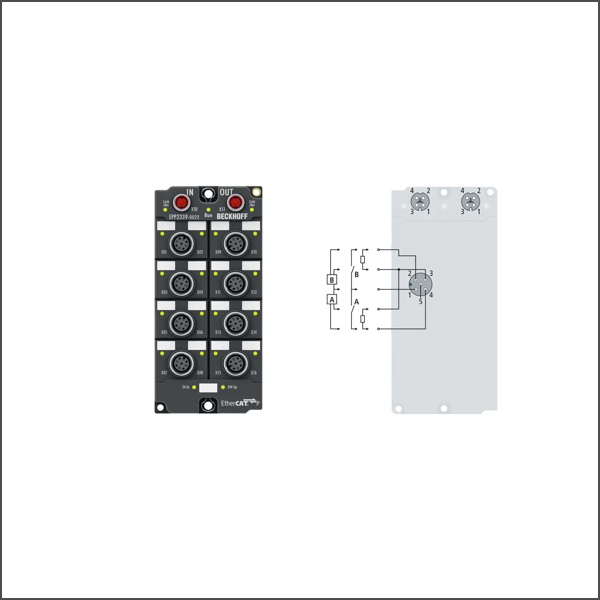

EPP2339-0022 EtherCAT P Box
SKU: EPP2339-0022
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP2339-0022 EtherCAT P Box has 16 digital channels, which can each be operated as an input or output.The input circuitry is internally hard-wired to the output driver so that once an output is set it is automatically also displayed in the input process image. The outputs process load currents up to 0.5 A, are short-circuit proof and protected against inverse polarity.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Specification: EN 61131-2, type 1/3
Number of channels: 16 digital inputs or outputs
Input/output connections: M12, screw type
Input filter: 3.0 ms
“0” signal voltage: -3…+5 V
“1” signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 3)
Sensor supply: from load supply voltage, max. 0.5 A, short-circuit proof in total
Load type: ohmic, inductive, lamp load
Rated load voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A per channel, individually short-circuit proof, ∑ 3 A
Switching times: typ. TON: 60 µs, typ. TOFF: 300 µs
Short-circuit current: typ. 1.5 A
Auxiliary power current: typ. 20 mA
Current consumption from US: typ. 100 mA
Electrical isolation: 500 V
Weight: approx. 250 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, UL
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
