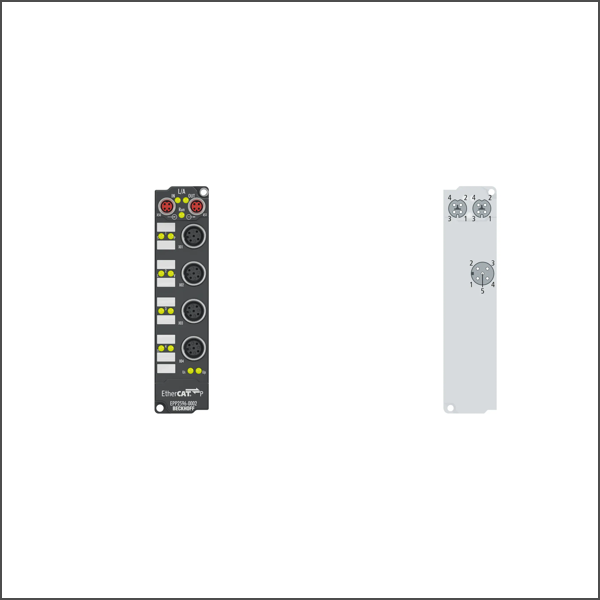

EPP2596-0002 EtherCAT P Box
SKU: EPP2596-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP2596-0002 LED strobe control box contains a flexible power supply unit that supplies the LED with the required current and voltage.The EPP2596-0002 has a trigger output for triggering cameras and high-quality, fast current and voltage control, so that line scan cameras, for example, also benefit from constant illumination. Extensive real-time diagnostics, e.g. for input current/voltage and output current/voltage allow detailed monitoring of the LED light intensity.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Number of outputs: 1
Output connections: M12, screw type
Nominal output voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0…3 A in pulsed mode (depending on output voltage and duty cycle), 0…1.2 A in continuous mode
Trigger output (to camera): 24 V DC
Trigger input (from camera): 24 V DC
Switching times: typ. TON: < 1 µs, typ. TOFF: < 1 µs, pulses from 25 µs…10 s
Distributed clocks: yes
Distributed clock precision:
