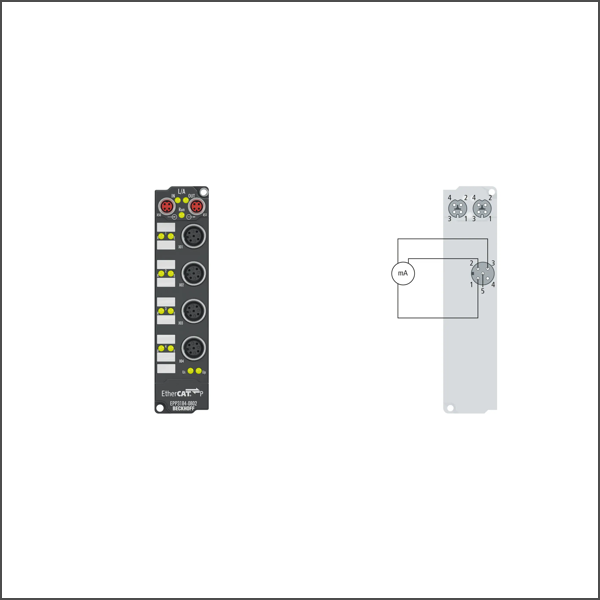

EPP3184-0802 EtherCAT P Box
SKU: EPP3184-0802
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP3184-0802 EtherCAT P Box allows the direct connection of HART-capable field devices. It supplies measuring transducers located in the field and transmits their analog measuring signals electrically isolated to the automation device.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Number of inputs: 4 (single-ended)
Input connections: M12, screw type
Signal type: 4…20 mA
Internal resistance: typ. 250 Ω
Resolution: 16 bit (incl. sign)
Measurement error/ uncertainty: < ±0.3 % (relative to full scale value)
Nominal voltage: 24 V DC (-15 %/+20 %)
Distributed clocks: yes
Input filter: configurable
Specification: HART (version 7)
Sensor supply: from load supply voltage UP
Current consumption from US: typ. 100 mA
Electrical isolation: 500 V
Special features: standard and compact process image, activatable FIR/IIR filters, limit value monitoring, NE43 NAMUR
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Weight: approx. 165 g
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, (UL in preparation)
