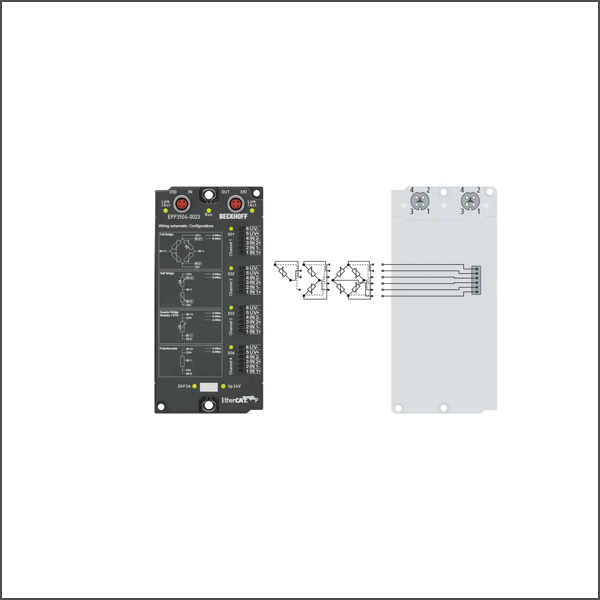

EPP3504-0023 EtherCAT P Box
SKU: EPP3504-0023
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP3504-0023 EtherCAT P Box is designed for the evaluation of measuring bridges in full-bridge, half-bridge and quarter-bridge configuration. It also supports the potentiometer, Pt1000 (RTD) and ±10 V measuring ranges.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Number of channels: 4
Input connections: connector with spring-loaded system
Technology: resistor bridge, strain gauge
Signal type: differential
Connection technology: 2-/3-/4-/5-/6-wire
Connection type: push-in, service plug 6-pin
Max. sampling rate: max. 100 µs/10 ksps (per channel, simultaneously)
Oversampling factor: n = 1…100 selectable (max. 10 ksamples/s)
Internal resistance: > 4 MΩ
Measurement error/ uncertainty: typ. < ±1000 ppm/±0.1 % in some measuring ranges, relative to the respective full scale value, see documentation
Temperature coefficient: up to typ. < 1 ppm/K in some measuring ranges, see documentation
Functional diagnostics: yes
Connection diagnostics: broken wire/short circuit
Distributed clocks: yes, accuracy
