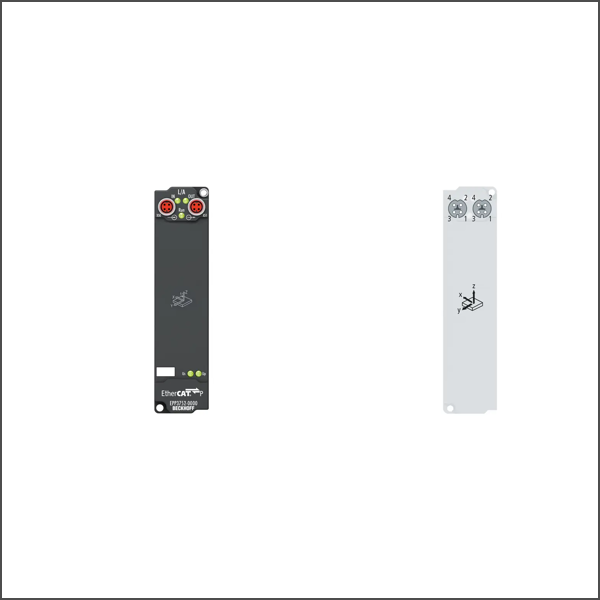

EPP3752-0000 EtherCAT P Box
SKU: EPP3752-0000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP3752-0000 EtherCAT P Box has two internal 3-axis accelerometers with 10 bits and a selectable measuring range of ±2 g, ±4 g, ±8 g and ±16 g.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Number of inputs: 2 x 3
Input connections: 3-axis accelerometers internally
Sensors: ±2…16 g, programmable
Sampling rate: 200 Hz up to 5 kHz
Resolution: 10 bit (incl. sign)
Nominal voltage: 24 V DC (-15 %/+20 %)
Sensor supply: from control voltage US
Current consumption from US: 120 mA
Electrical isolation: 500 V
Special features: extended filter functions, tilt measurement
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, (UL in preparation)
