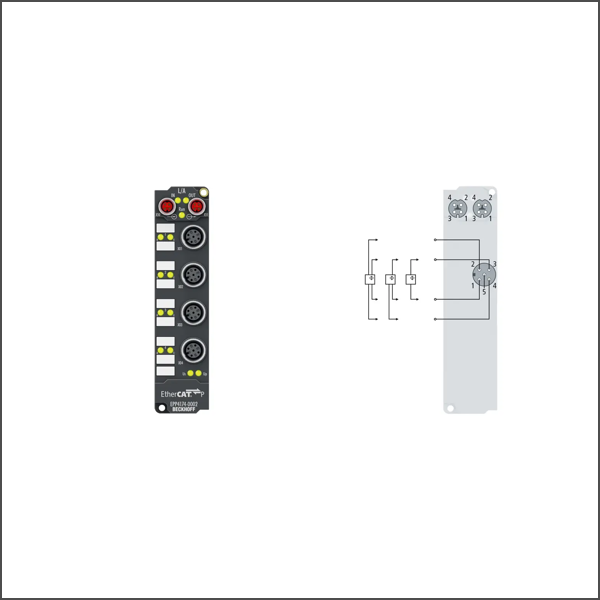

EPP4174-0002 EtherCAT P Box
SKU: EPP4174-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP4174-0002 EtherCAT P Box has four analog outputs which can be individually parameterized, so that they generate signals either in the -10 to +10 V or the 0/4 to 20 mA range.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Number of channels: 4 analog outputs
Output connections: M12, screw type
Signal type: -10/0…+10 V | 0/4…20 mA, parameterizable per channel
Nominal voltage: 24 V DC (-15 %/+20 %)
Load: > 5 kΩ | < 500 Ω
Resolution: 16 bit
Conversion time: ~ 40 µs
Measurement error/ uncertainty: < 0.1 % (relative to full scale value)
Actuator supply: from the auxiliary voltage UP
Electrical isolation: 500 V
Current consumption from US: typ. 100 mA
Special features: current or voltage parameterizable per channel
Weight: approx. 165 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
