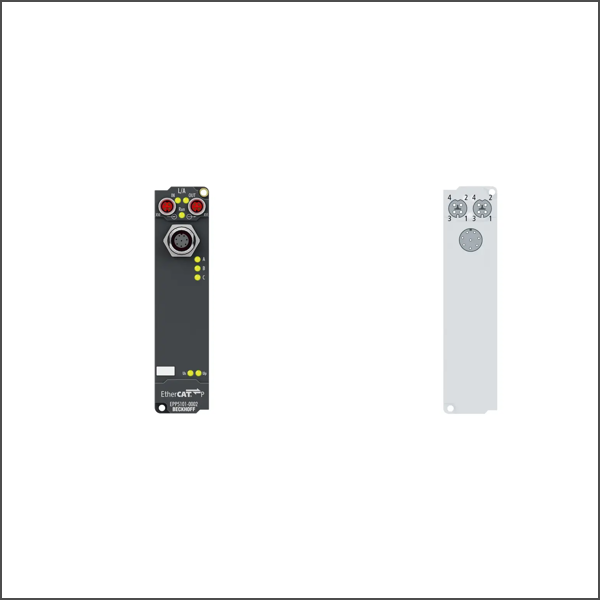

EPP5101-0002 EtherCAT P Box

Protocol: EtherCAT Bus interface: 2 x M8 socket, shielded, screw type, P-coded Technology: incremental encoder interface, differential (RS422), single-ended (TTL), counter, pulse generator Encoder type: incremental encoder Number of channels: 1 Connection encoder/sensor: M12, screw type, 8-pin Encoder connection: A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422) Encoder operating voltage: 5 V DC/150 mA (generated from US) Nominal voltage; 24 V DC (-15 %/+20 %) Counter : 32 or 16 bit, binary Limit frequency: 4 million increments/s (with 4-fold evaluation), corresponding to 1 MHz Quadrature decoder: 4-fold evaluation Zero-pulse latch : 16/32 bit Commands: read, set, enable Distributed clocks: yes Current consumption from US: typ. 100 mA Electrical isolation: 500 V Weight: approx. 165 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Approvals/markings: CE, UL Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
