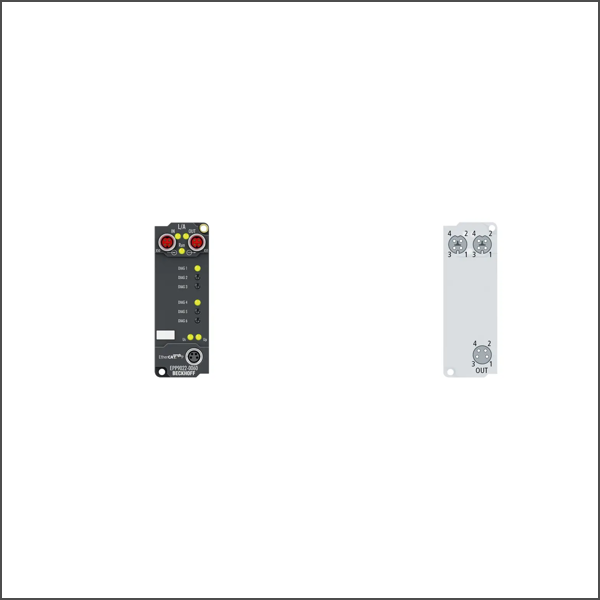

EPP9022-0060 EtherCAT P Box
SKU: EPP9022-0060
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP9022-0060 EtherCAT P Box can be used for diagnosing and measuring the voltages US and UP and currents IS and IP, both temporarily during commissioning and permanently during operation. Even without an EtherCAT master, the voltage range is displayed on the box by LEDs (green, yellow and red). In a running EtherCAT network, the values of US, UP, IS and IP can also be read out as process data in the master. The voltage levels for the LED displays can be adjusted by CoE.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT P
Bus interface: M8 socket, shielded, screw type, P-coded
Task within EtherCAT system: diagnostics of the US/UP voltages and IS/IP currents
Number of channels: IN: 1 x EtherCAT P, OUT: 1 x EtherCAT P
Nominal voltage: 24 V DC (-15 %/+20 %)
Total current: feed-in max. 3 A per US and UP
Current consumption from US: typ. 100 mA
Current rating per port: max. 3 A per US and UP
Special feature: diagnostic LED for US, diagnostic LED for UP
Weight: approx. 90 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
