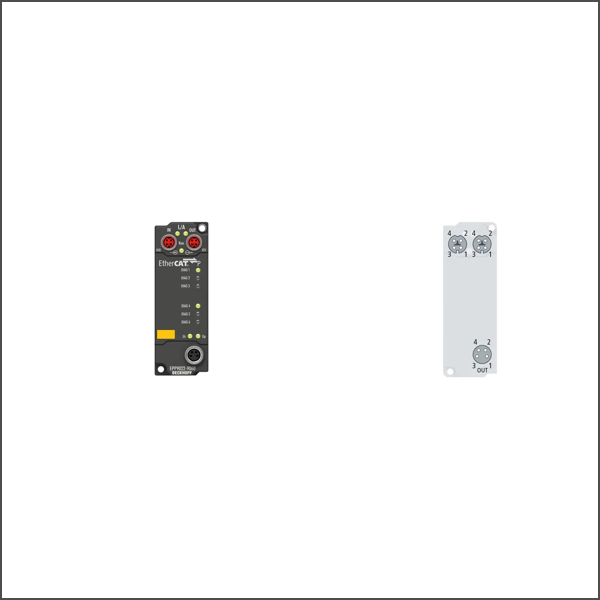

EPP9022-9060 EtherCAT P Box
SKU: EPP9022-9060
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP9022-9060 EtherCAT P Box in space-saving form factor can be used for diagnosing and measuring the voltages US and UP and currents IS and IP, both temporarily during commissioning and permanently during operation.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT P
Bus interface: M8 socket, shielded, screw type, P-coded
Task within EtherCAT system: diagnostics of the US/UP voltages and IS/IP currents
Number of channels: IN: 1 x EtherCAT P, OUT: 1 x EtherCAT P
Nominal voltage: 24 V DC (-15 %/+20 %)
Total current: feed-in max. 3 A per US and UP
Current consumption from US: typ. 100 mA
Current rating per port: max. 3 A per US and UP
Special features: diagnostic LED for US, diagnostic LED for UP, TwinSAFE SC
Weight: approx. 90 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
