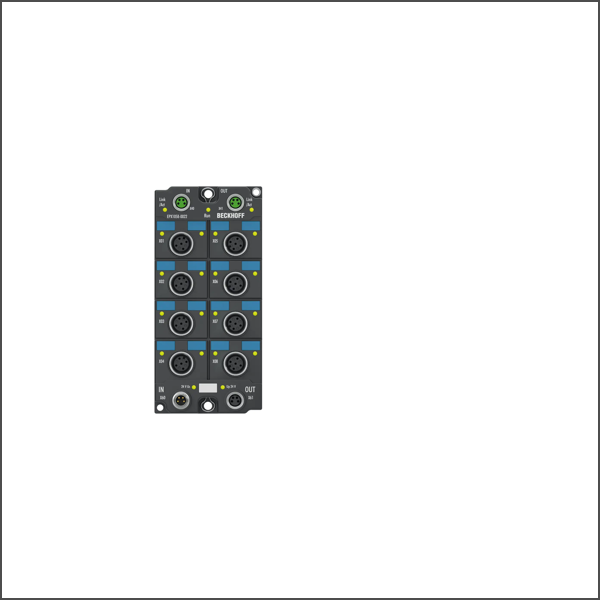

EPX1058-0022 EtherCAT Box
SKU: EPX1058-0022
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPX1058-0022 EtherCAT Box acquires signals from NAMUR field devices according to IEC 60947-5-6. The sensors are supplied with a voltage of 8.2 V and return a diagnosable current signal. In this way, a wire breakage or short circuit can be detected in addition to the switching state. The LEDs indicate signal or any error states, channel by channel.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Specification: NAMUR (IEC 60947-5-6)
Number of inputs: 8
Input connections: M12, screw type
Connection method: 2-wire
Open circuit voltage: typ. 8.2 V DC
“0” signal current: ≤ 1.2 mA
“1” signal current: ≥ 2.1 mA
Switching hysteresis: typ. 300 µA
Short-circuit current: typ. 7 mA
Fault detection: I ≤ 200 µA (cable break), I ≥ 6.3 mA (short circuit)
Max. switching frequency: 1 kHz
Sensor supply: from load supply voltage UP
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Current consumption from US: 50 mA
Special features: can be parameterized by channel: NAMUR NO/NC, potential-free contacts NO/NC
Weight: approx. 250 g
Operating/storage temperature: -25…+70 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc, II (1)D Ex tc [ia Da] IIIC T135 °C Dc, I (M1) [Ex ia Ma] I/ IECEx: Ex ec [ia Ga] IIC T4 Gc, Ex tc [ia Da] IIIC T135 °C Dc, [Ex ia Ma] I
