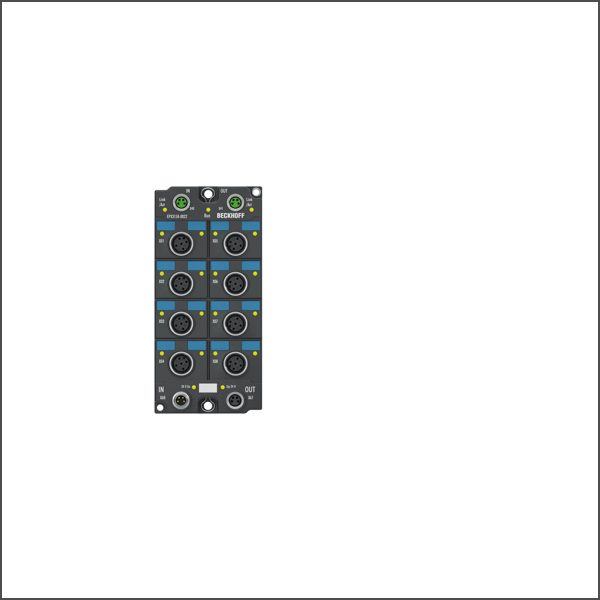

EPX3158-0022 EtherCAT Box
SKU: EPX3158-0022
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPX3158-0022 EtherCAT Box allows the direct connection of intrinsically safe field devices located in hazardous areas classified zone 0/20 or 1/21. It supplies measuring transducers located in the field and transmits their analog measuring signals electrically isolated to the automation device. With a technical measuring range of +107 % of the nominal range, the box also supports commissioning with sensor values in the limit range and evaluation according to NAMUR NE43.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Number of inputs: 8 (single-ended)
Input connections: M12, screw type
Connection method: 2-, 3-wire
Signal current: 4…20 mA
Internal resistance: typ. 100 Ω
Resolution: 16 bit (incl. sign)
Measurement error/ uncertainty: < ±0.3 % (relative to full scale value)
Conversion time: typ. 1 ms
Input filter limit frequency: 5 kHz
Nominal voltage: 24 V DC
Distributed clocks: yes
Input filter: configurable
Sensor supply: from load supply voltage UP
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Current consumption from US: 50 mA
Special features: standard and compact process image, activatable FIR/IIR filters, limit value monitoring, NE43 NAMUR
Weight: approx. 250 g
Operating/storage temperature: -25…+70 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc, II (1)D Ex tc [ia Da] IIIC T135 °C Dc I (M1) [Ex ia Ma] I/ IECEx: Ex ec [ia Ga] IIC T4 Gc Ex tc [ia Da] IIIC T135 °C Dc [Ex ia Ma] I
