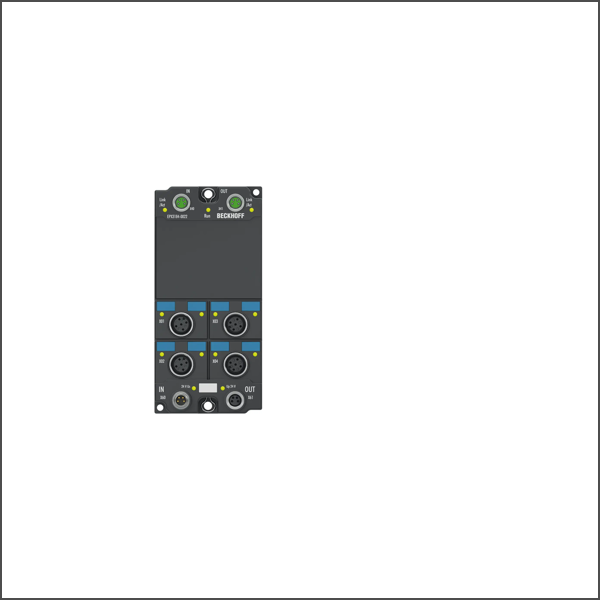

EPX3184-0022 EtherCAT Box

Protocol: EtherCAT Bus interface: 2 x M8 socket, shielded, screw type Specification: HART (version 7) Number of inputs: 4 (single-ended) Input connections: M12, screw type Connection method: 2-wire Signal current: 4…20 mA Internal resistance: typ. 250 Ω Resolution: 16 bit (incl. sign) Measurement error/ uncertainty: < ±0.3 % (relative to full scale value) Conversion time: typ. 1 ms Input filter limit frequency: 25 Hz Nominal voltage: 24 V DC Distributed clocks: yes Input filter: configurable Sensor supply: from load supply voltage UP Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Current consumption from US: 50 mA Special features: standard and compact process image, activatable FIR/IIR filters, limit value monitoring, NE43 NAMUR Weight: approx. 250 g Operating/storage temperature: -25…+70 °C/-40…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL, Ex, IECEx (in preparation)
