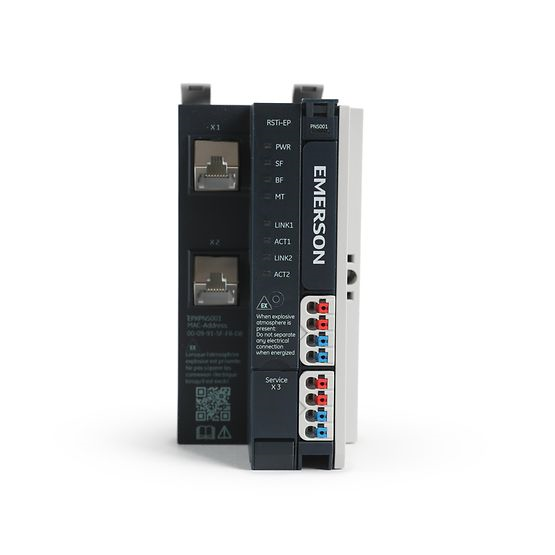

RSTi-EP PROFINET IRT Network Adapter
SKU: EPXPNS001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A PROFINET network adapter and the head module for the RSTi-EP communication bus. Facilitates up to 64 active RSTi-EP modules with two Ethernet ports and an integrated switch.
A wider range of operating temperatures and improved diagnostics.
DIN rail attached high-speed system bus that reads up to 256 DI/DOs in 20 Ms.
Integrated Web server for firmware updates and diagnostic data via Ethernet and micro-USB ports.
Media Redundancy Protocol (MRP) is supported.
Client mode functionality.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: EPXPNS001
Network Adapter / Use: Modbus
Number of Modules: up to 64 actives
Connection: 2x RJ-45
Two Ethernet ports that are switched; an eight-conductor shielded twisted pair RJ-45 copper interfaces at 10/100 Mbps.
Quick start-up (less than 500 ms) with up to 10 modules.
Supports client mode functioning of the Media Redundancy Protocol (MRP).
Support for technologies such as daisy-chain/line, star, or ring (MRP).
