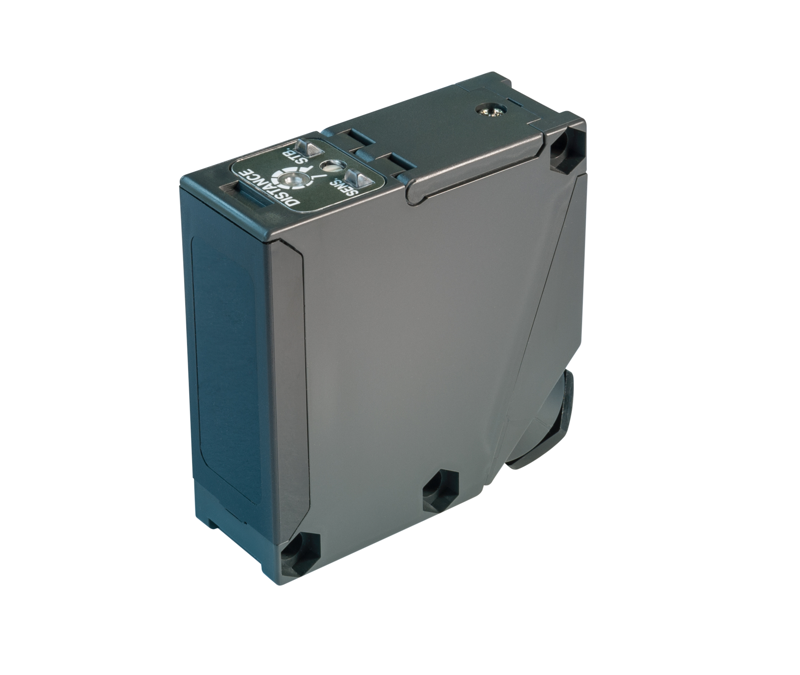

TRIANGUL. SENS 24-240VAC/DC 2.5M EQ-501T
SKU: EQ-501T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EQ-500 series adjustable range reflective photoelectric sensor:
The EQ-500 series is a reflective photoelectric sensor with a small footprint.
This sensor has a large sensing range of up to 2.5 meters and suppresses both background and foreground (DC kinds).
Even in tough conditions prone to water and dust, stable sensing is achievable.
Key features:
Convenient terminal block design.
It includes the BGS/FGS function.
Timer function models are convenient.
Background objects make no difference.
An easy-to-use adjustment with an indicator.
Contamination of the lens has little effect.
Unaffected by colour or angle changes.
multi-voltage: 24 - 240 VAC and 12 - 240 VDC.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: EQ-500.
SUPPLY VOLTAGE: 24 - 240 VAC/DC.
DIFFUSED: Yes.
RETRO-REFLECTIVE: No.
POLARISED RETRO: No.
THROUGH-BEAM: No.
SENSING DISTANCE (MM): 2.5 meter.
PNP: No.
NPN: No.
LIGHT-ON: Yes.
DARK-ON: Yes.
CONNECTOR: screw terminal.
OUTPUT: 3A 250V - selectable: Detection-ON or Detection-OFF.
LED INDICATION: Red: (output ON) Green: (stable light received).
HOUSING MATERIAL: PBT.
INDEX PROTECTION: IP67.
DIMENSIONS (MM): (H) 68 x (W) 26 x (D) 68.
