EQ2339-0022 EtherCAT Box
SKU: EQ2339-0022
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

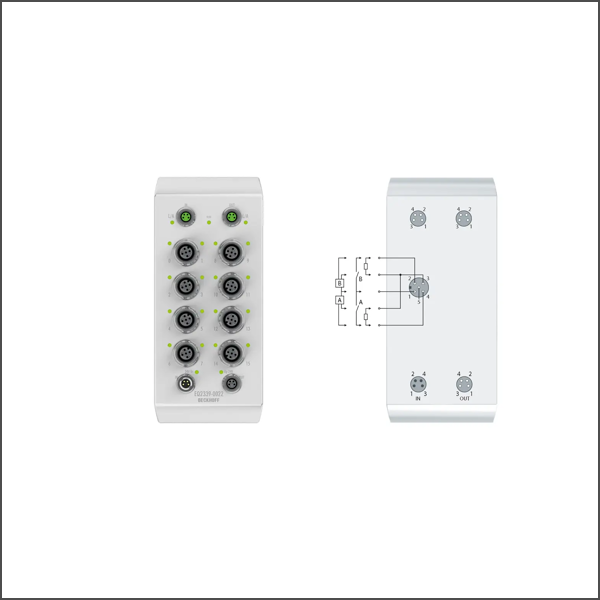

The EQ2339 EtherCAT Box has 16 digital channels, each of which can optionally be operated as an input or as an output. A configuration for using a channel as input or output is not necessary; the input circuit is internally connected to the output driver, so that a set output is displayed automatically in the input process image.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Specification: EN 61131-2, type 1/3
Number of channels: 16 digital inputs or outputs
Input/output connections: M12, screw type
Input filter: 3.0 ms
“0” signal voltage: -3…+5 V
“1” signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 3)
Sensor supply: from load supply voltage, max. 0.5 A, short-circuit proof in total
Load type: ohmic, inductive, lamp load
Rated load voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A per channel, individually short-circuit proof, ∑ 4 A
Switching times: typ. TON: 60 µs, typ. TOFF: 300 µs
Short-circuit current: typ. 1.5 A
Auxiliary power current: typ. 20 mA + load
Current consumption from US: 120 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation: 500 V
Special features: stainless steel, Hygienic Design
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, UL
Protect. rating/installation pos.: IP69K (according to EN 60529)/variable
