EQ2809-0022 EtherCAT Box
SKU: EQ2809-0022
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

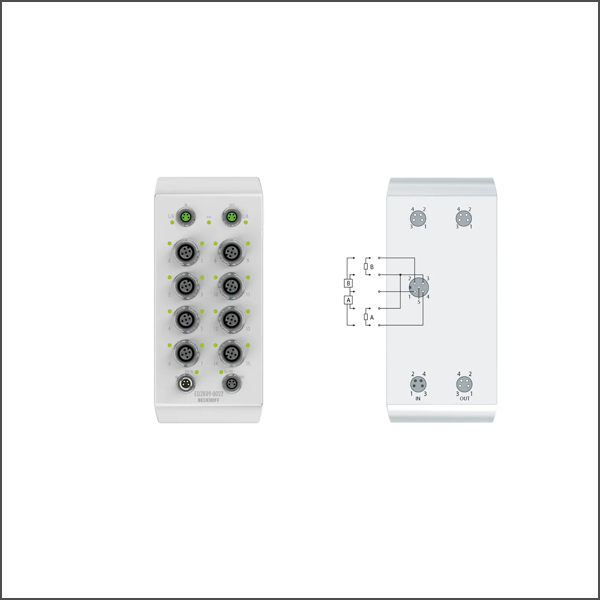

The EQ2809 EtherCAT Box with digital outputs connects the binary control signals from the controller on to the actuators at the process level. The 16 outputs handle load currents of up to 0.5 A each, although the total current is limited to 4 A. This makes these modules particularly suitable for applications in which not all of the outputs are active at the same time, or in which not all of the actuators draw 0.5 A current.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Number of outputs: 16
Rated load voltage: 24 V DC (-15 %/+20 %)
Output connections: M12, screw type
Load type: ohmic, inductive, lamp load
Nominal output voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A per channel, individually short-circuit proof, ∑ 4 A
Switching times: typ. TON: 60 µs, typ. TOFF: 300 µs
Short-circuit current: typ. 1.5 A
Current consumption from US: typ. 130 mA
Auxiliary power current: typ. 20 mA + load
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation: 500 V
Special features: stainless steel, Hygienic Design
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP69K (according to EN 60529)/variable
Approvals/markings: CE, UL
