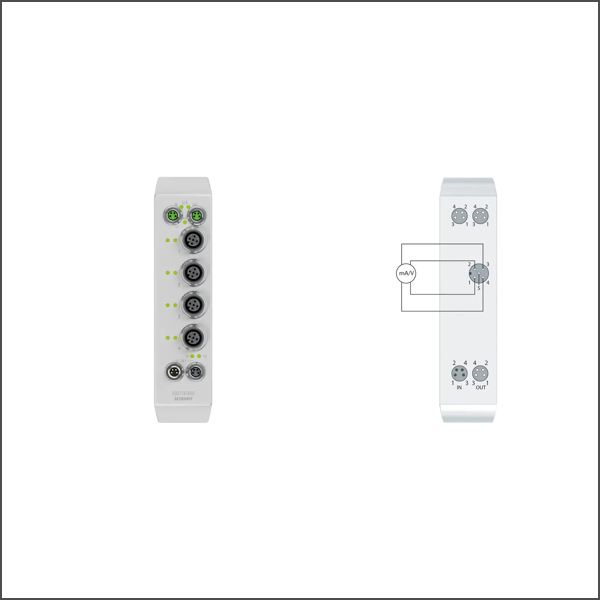

EQ3174-0002 EtherCAT Box
SKU: EQ3174-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EQ3174 EtherCAT Box has four analog inputs which can be individually parameterized, so that they process signals either in the -10…+10 V or the 0/4…20 mA range. The voltage or input current is digitized with a resolution of 16 bits, and is transmitted (electrically isolated) to the higher-level automation device.4-channel analog input.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Number of inputs: 4
Input connections: M12, screw type
Signal type: -10/0…+10 V | 0/4…20 mA, parameterizable per channel
Internal resistance: > 200 kΩ | typ. 85 Ω + diode voltage
Common-mode voltage UCM: max. 35 V
Resolution: 16 bit (incl. sign)
Measuring error: < ±0.3 % (relative to full scale value)
Conversion time: ~ 100 µs
Input filter limit frequency: 5 kHz
Nominal voltage: 24 V DC (-15 %/+20 %)
Distributed clocks: yes
Input filter: configurable
Sensor supply: from load supply voltage UP
Current consumption from US: 120 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation: 500 V
Special features: stainless steel, Hygienic Design
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.:IP69K (according to EN 60529)/variable
Approvals/markings: CE, UL
