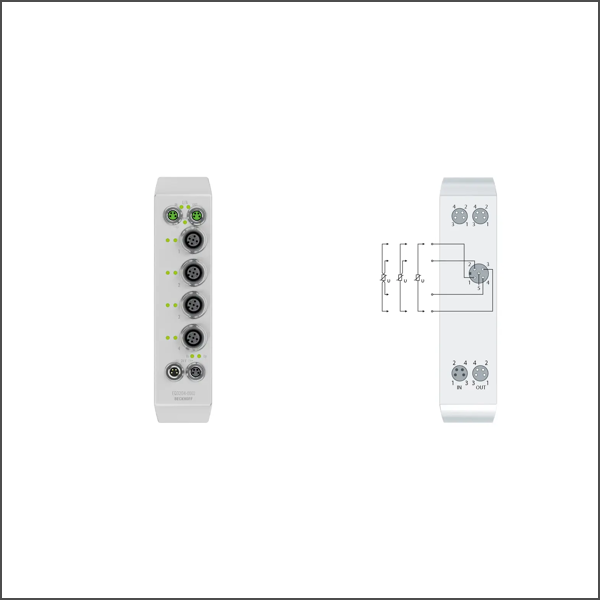

EQ3204-0002 EtherCAT Box

Protocol: EtherCAT Bus interface: 2 x M8 socket, shielded, screw type Number of inputs: 4 Input connections: M12, screw type Connection method: screw type M12 for 2-, 3- and 4-wire connections, presetting: 2-wire Sensor types: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…1.2/4 kΩ) Signal type: Pt100 Measuring range: -200…+850 °C (Pt sensors); -60…+250 °C (Ni sensors) Resolution: 0.1 °C per digit Measuring error: < ±0.5 °C (Pt sensors in 4-wire connection) Conversion time: 800 ms up to 2 ms, see documentation, default: approx. 85 ms Nominal voltage: 24 V DC (-15 %/+20 %) Measuring current: typ. 0.5 mA Input filter: 5 variations, configurable Current consumption from US: 120 mA Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Electrical isolation: 500 V Special features: stainless steel, Hygienic Design Operating/storage temperature: -25…+60 °C/-40…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP69K (according to EN 60529)/variable Approvals/markings: CE, UL
