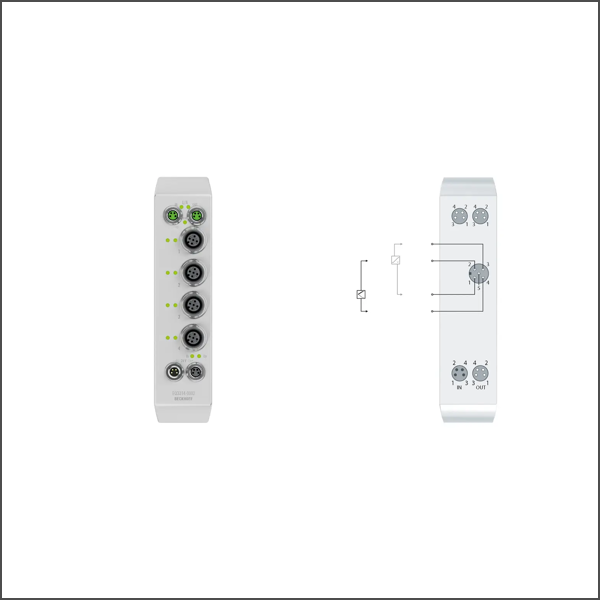

EQ3314-0002 EtherCAT Box
SKU: EQ3314-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EQ3314 EtherCAT Box with analog inputs permits four thermocouples to be directly connected. The module’s circuit can operate thermocouple sensors using the 2-wire technique. Linearization over the full temperature range is realized with the aid of a microprocessor.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Number of inputs: 4
Connection method: screw type M12, 2-wire connection for thermocouple
Sensor types: types J, K, L, B, E, N, R, S, T, U (default setting type K), mV measurement
Signal type: thermocouple
Measuring range: depending on sensor type; preset value is type K, -100…+1370 °C
Resolution: 0.1 °C per digit
Measuring error: < ±0.3 % for type K (relative to full scale value; further types see documentation)
Conversion time: 2.5 s up to 20 ms, see documentation, default: approx. 250 ms
Nominal voltage: 24 V DC (-15 %/+20 %)
Input filter: 5 variations, configurable
Current consumption from US: 120 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation: 500 V
Special features: stainless steel, Hygienic Design
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP69K (according to EN 60529)/variable
Approvals/markings: CE, UL
