ER2318-0001 EtherCAT Box
SKU: ER2318-0001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

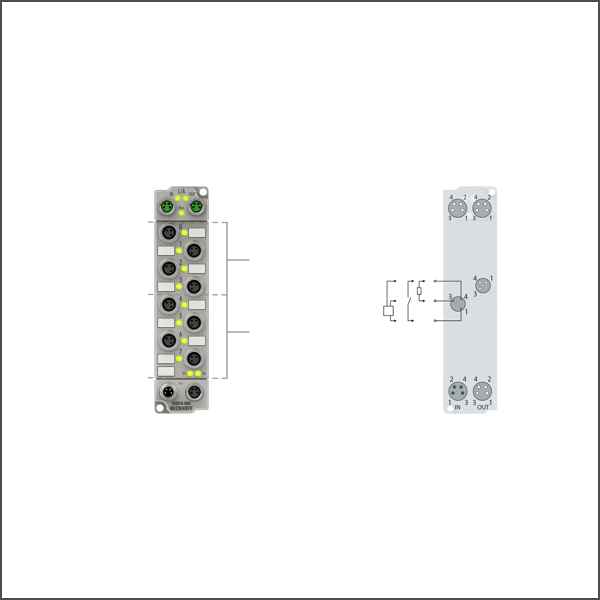

The ER2318-0001 EtherCAT Box combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via screw type M8 connectors.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Specification: EN 61131-2, type 1/3
Number of channels: 4 inputs + 4 outputs
Input/output connections: M8, screw type
Input filter: 10 µs
“0” signal voltage: -3…+5 V
“1” signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 3)
Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total
Load type: ohmic, inductive, lamp load
Rated load voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A
Switching times: typ. TON: 50 µs, typ. TOFF: 100 µs
Short-circuit current: typ. 1.5 A
Auxiliary power current: typ. 20 mA per channel
Current consumption from US: 120 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation: control voltage/fieldbus: yes
Weight: approx. 265 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, UL
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
