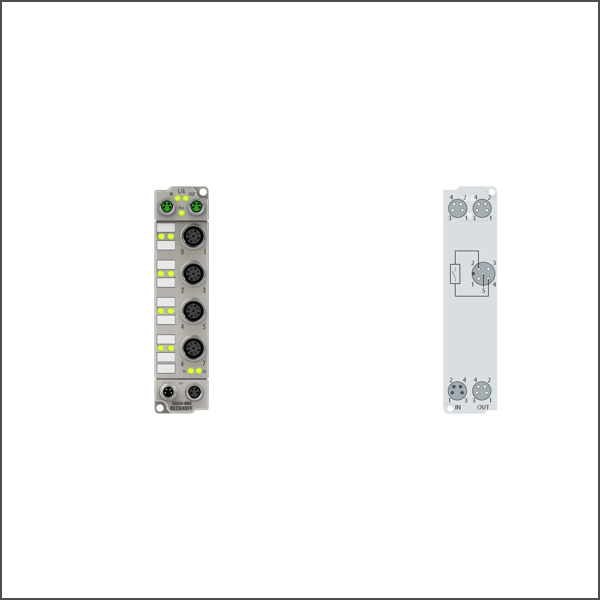

ER2624-0002 EtherCAT Box
SKU: ER2624-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ER2624-0002 EtherCAT Box has four relays each of which has a single contact. The relay contact is suitable for use at up to 25 V AC or 30 V DC. The EtherCAT Box indicates its signal state by means of light emitting diodes. The ER2624-0002 has potential-free contacts. The power supply is looped through.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Number of outputs: 4 x make contacts
Rated load voltage: 25 V AC/30 V DC
Ohmic switching current: 0.5 A AC/2 A DC
Output connections: M12, screw type
Minimum permitted load: 10 µA at 10 mV DC
Load type: ohmic, inductive, lamp load
Nominal output voltage: 24 V DC (-15 %/+20 %)
Current consumption from US: 120 mA
Current consumption from US (without sensor current): 120 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Operating cycles mech. (min.): 1 x 108
Operating cycles electr. (min.): 2 x 105 (1 A/30 V DC)
Electrical isolation: 500 V
Special features: potential-free switching
Weight: approx. 265 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
