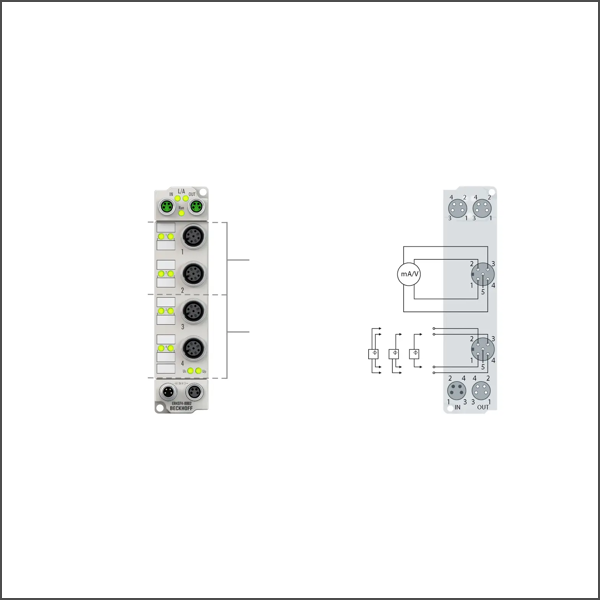

ER4374-0002 EtherCAT Box
SKU: ER4374-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ER4374-0002 EtherCAT Box combines two analog inputs and two analog outputs which can be individually parameterized, so that they process/generate signals either in the -10…+10 V or the 0/4…20 mA range. The resolution for the current and voltage signals is 16 bit (signed).
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Number of channels: 2 analog outputs + 2 analog inputs
Input/output connections: M12, screw type
Signal type: -10/0…+10 V | 0/4…20 mA, parameterizable per channel
Nominal voltage: 24 V DC (-15 %/+20 %)
Load: output: > 5 kΩ | < 500 Ω
Internal resistance: input: > 200 kΩ | typ. 85 Ω + diode voltage
Resolution: 16 bit
Conversion time: input: ~ 100 µs, output: ~ 40 µs
Measurement error/ uncertainty: input: < 0.3 %, output: < 0.1 % (each relative to full scale value)
Actuator supply: from the auxiliary voltage UP
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation: 500 V
Current consumption from US: 120 mA
Special features: combi module, current or voltage parameterizable per channel
Weight: approx. 265 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
