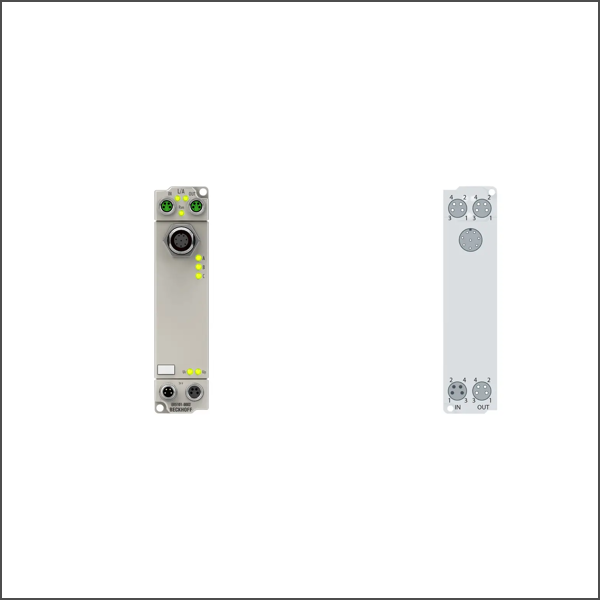

ER5101-0002 EtherCAT Box
SKU: ER5101-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ER5101-0002 EtherCAT Box is an interface for the direct connection of incremental encoders with differential inputs (RS485). A 32/16 bit counter with a quadrature decoder and a 32/16 bit latch for the zero pulse can be read, set or enabled. Incremental encoders with alarm outputs can be connected at the interface’s status input.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Technology: incremental encoder interface, differential (RS422), single-ended (TTL), counter, pulse generator
Number of channels: 1
Encoder connection: A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422)
Nominal voltage: 24 V DC (-15 %/+20 %)
Sensor supply: +5 V DC, 150 mA (VCC)
Counter : 32 or 16 bit, binary
Limit frequency: 4 million increments/s (with 4-fold evaluation)
Quadrature decoder: 4-fold evaluation
Zero-pulse latch: 16/32 bit
Commands: read, set, enable
Distributed clocks: yes
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Current consumption from US: typ. 130 mA + load
Electrical isolation: 500 V
Weight: approx. 265 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, UL
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
