ER5101-1002 EtherCAT Box
SKU: ER5101-1002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

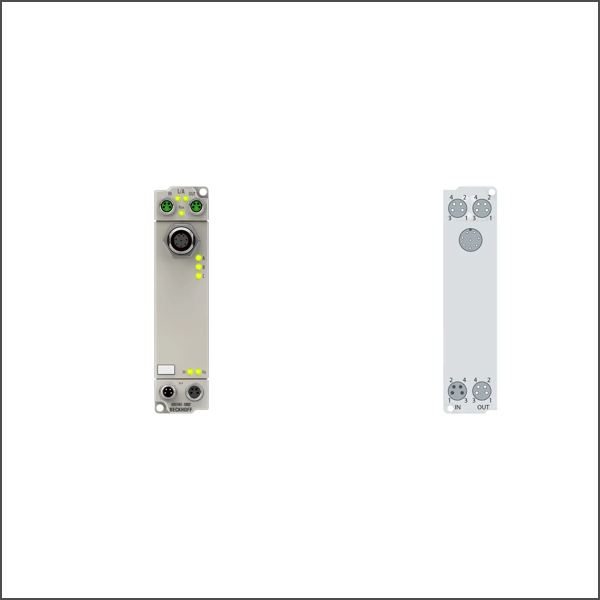

The ER5101-1002 EtherCAT Box is an interface for the direct connection of incremental encoders with differential inputs (RS485). A 32/16 bit counter with a quadrature decoder and a 32/16 bit latch for the zero pulse can be read, set or enabled.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Technology: incremental encoder interface, differential (RS422), single-ended (TTL), counter, pulse generator
Number of channels: 1
Encoder connection: A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422)
Nominal voltage: 24 V DC (-15 %/+20 %)
Sensor supply: 24 V DC, 500 mA (VCC)
Counter : 32 or 16 bit, binary
Limit frequency: 4 million increments/s (with 4-fold evaluation)
Quadrature decoder: 4-fold evaluation
Zero-pulse latch: 16/32 bit
Commands: read, set, enable
Distributed clocks: yes
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Current consumption from US: typ. 130 mA + load
Electrical isolation: 500 V
Weight: approx. 265 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, UL
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
