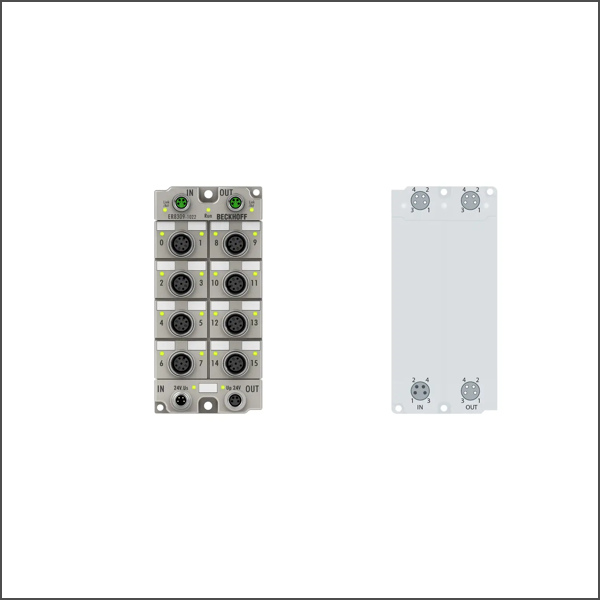

ER8309-1022 EtherCAT Box
SKU: ER8309-1022
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ER8309-1022 EtherCAT Box has various digital and analog inputs and outputs: eight digital inputs/outputs, two digital tacho inputs, two analog inputs, one analog output and a 1.2 A PWMi output. The current signals have 12-bit resolution. The tacho outputs supply a speed-dependent velocity or frequency value via digital 24 V sensors.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Number of channels: 8 digital inputs or outputs (6…13)
Input filter: 3 ms
Limit frequency: 2.5 kHz
Signal connection: M12, screw type
Number of analog inputs: 2, single-ended, 12 bit, 0/4…20 mA (0/2)
Number of analog outputs: 1, single-ended, 12 bit, 0/4…20 mA (15)
Number of PWMi outputs: 1 x 1.2 A, max. 30 kHz (14)
Nominal voltage: 24 V DC (-15 %/+20 %)
Measuring error: input: < 0.3 %, output: < 0.1 % (each relative to full scale value)
Sensor supply: from control voltage US
Actuator supply: from the auxiliary voltage UP
Electrical isolation: 500 V
Special features: multi-functional I/O box for universal use
Weight: approx. 450 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
