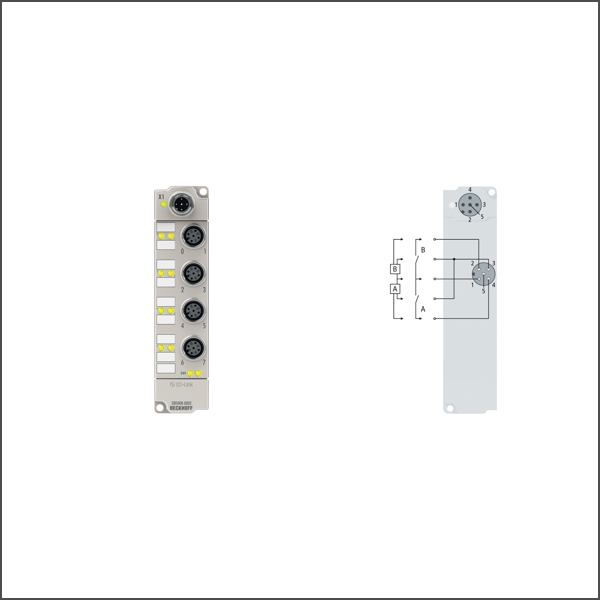

ERI1008-0002 IO-Link box
SKU: ERI1008-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ERI1008-0002 IO-Link box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes.
Buy currently uses Select Automation shop pricing and checkout.
Communication: IO-Link
Interfaces: 1 x M12 plug, A-coded
Data transfer rates: 230.4 kbaud (COM 3)
Specification version: IO-Link V1.1, Class A
Number of inputs: 8
Input connections: M12, screw type
Nominal input voltage: 24 V DC (-15 %/+20 %)
Input filter: 3.0 ms (default), adjustable 0…20 ms
“0” signal voltage: -3…+5 V (EN 61131-2, type 3)
“1” signal voltage: 11…30 V (EN 61131-2, type 3)
Input current: typ. 3 mA (EN 61131-2, type 3)
Sensor supply: max. 0.5 A, from L+, short-circuit proof in total
Current consumption: typ. 100 mA from L+
Weight: approx. 265 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
