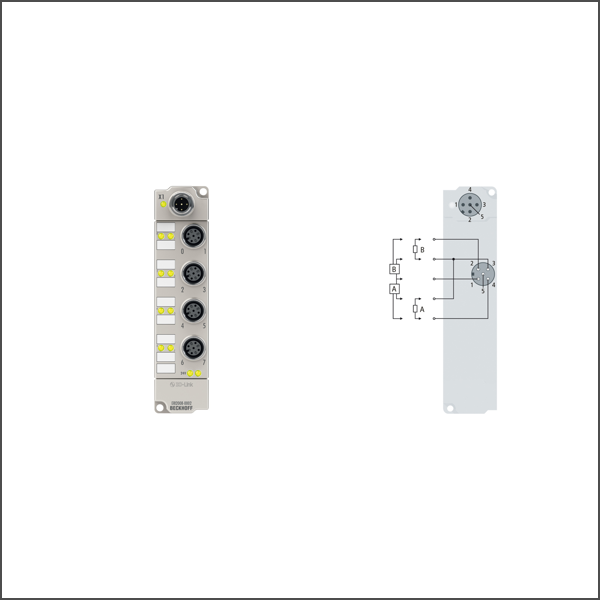

ERI2008-0002 IO-Link box
SKU: ERI2008-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ERI2008-0002 IO-Link box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 0.5 A, and although the total current is limited to 4 A, they indicate their status through light emitting diodes.
Buy currently uses Select Automation shop pricing and checkout.
Communication: IO-Link
Interfaces: 1 x M12 plug, A-coded
Data transfer rates: 230.4 kbaud (COM 3)
Specification version: IO-Link V1.1, Class B
Number of outputs: 8
Output connections: M12, screw type
Load type: ohmic, inductive, lamp load
Nominal output voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A per channel, from P24, individually short-circuit proof
Short-circuit current: typ. 1.5 A
Current consumption: typ. 100 mA from L+
Auxiliary power current: typ. 20 mA + load
Electrical isolation: L+/P24: yes
Weight: approx. 265 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
