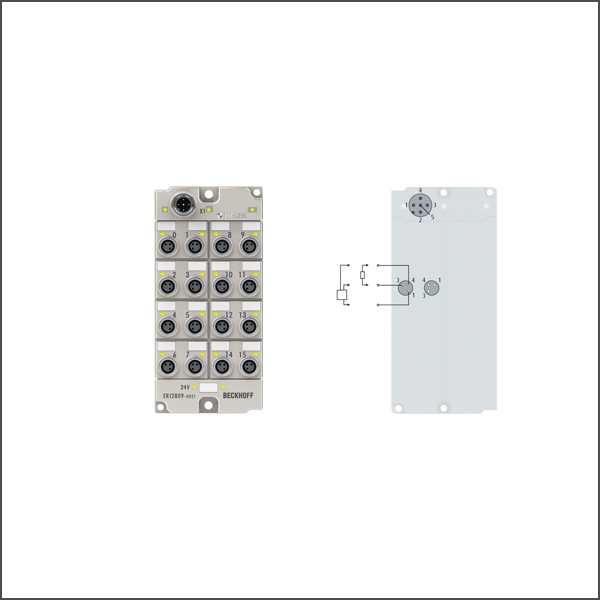

ERI2809-0021 IO-Link box
SKU: ERI2809-0021
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ERI2809-0021 IO-Link box with digital outputs connects the binary control signals from the controller on to the actuators at the process level. The 16 outputs handle load currents of up to 0.5 A each, although the total current is limited to 4 A.
Buy currently uses Select Automation shop pricing and checkout.
Communication: IO-Link
Interfaces: 1 x M12 plug, A-coded
Data transfer rates: 230.4 kbaud (COM 3)
Specification version: IO-Link V1.1, Class B
Number of outputs: 16
Output connections: M8, screw type
Load type: ohmic, inductive, lamp load
Nominal output voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A per channel, from P24, individually short-circuit proof, ∑ 4 A
Short-circuit current: typ. 1.5 A
Current consumption: typ. 100 mA from L+
Auxiliary power current: typ. 20 mA + load
Electrical isolation: L+/P24: yes
Weight: approx. 450 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
