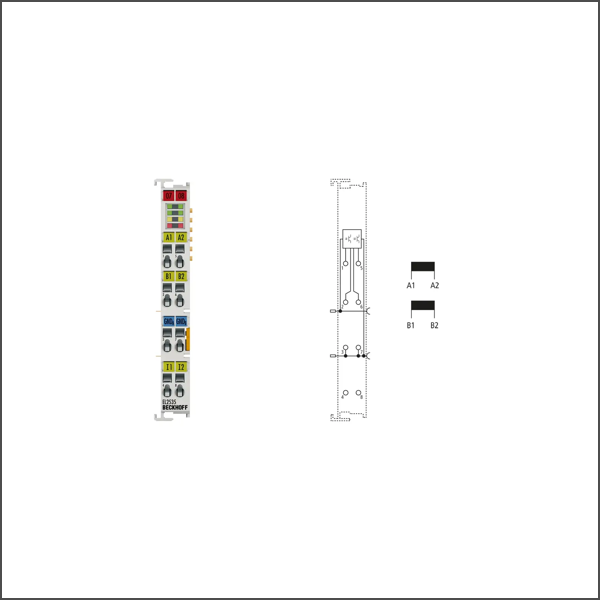

ES2535 EtherCAT Terminal

Connection technology: PWM output, push-pull outputs Number of outputs: 2 Nominal voltage: 24 V DC (-15 %/+20 %) Load type: inductive > 1 mH Max. output current: ±1 A per channel Short-circuit current: typ. < 2 A PWM clock frequency: 30 kHz default Duty factor: 0…100 % (current-controlled) Resolution: 10 bit Reverse voltage protection: yes Current consumption E-bus typ.: 110 mA Electrical isolation: 500 V (E-bus/field potential) Current consumption power contacts: typ. 30 mA + load Bit width in the process image: 48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status Special features: 2 digital 24 V inputs Weight : approx. 50 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP20/see documentation Pluggable wiring: for all ESxxxx terminals Approvals/markings: CE, UL
