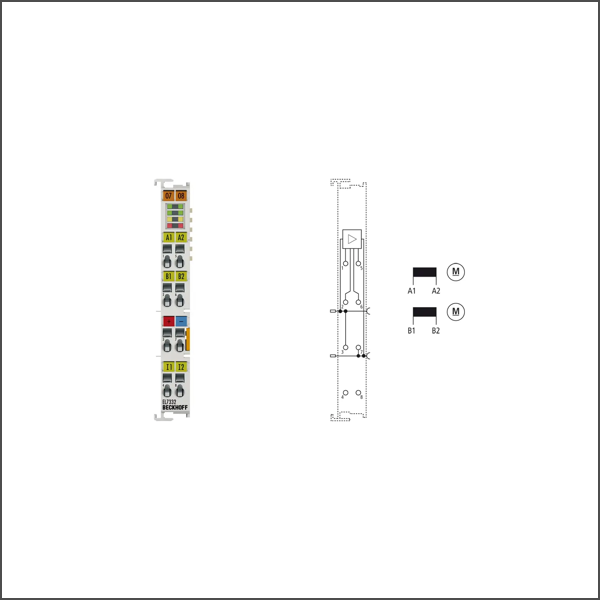

ES7332 EtherCAT Terminal, 2-channel motion interface, DC motor, 24 V DC, 1 A

Connection method: direct motor connection Number of inputs: 1 x end position per channel Load type: DC brush motor, inductive Number of channels: 2 Number of outputs: 1 x DC motor per channel Supply voltage electronics: 24 V DC (via power contacts) Supply voltage power: 24 V DC (internally via power contacts) Output current: max. 1 A per channel Performance increase: yes, through ZB8610 fan cartridge Output current with ZB8610: max. 3.0 A per channel PWM clock frequency: 32 kHz with 180° phase shift each Duty factor: 0…100 % (voltage-controlled) Resolution: max. 10 bit current, 16 bit speed Current consumption power contacts: typ. 40 mA + motor current Current consumption E-bus: typ. 140 mA Distributed clocks: yes Special features: travel distance control Electrical isolation: 500 V (E-bus/field potential) Weight: approx. 50 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Relative humidity: 95 %, no condensation EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/see documentation Pluggable wiring for all ESxxxx terminals Approvals/markings: CE, UL
