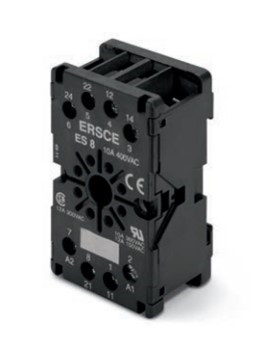

8 PIN SURFACE/DIN MOUNT SOCKET BLACK
SKU: ES8CNER
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Accessory for modular timing devices in the L48 series:
Description: DIN rail-mounting relay socket, 8-pin surface.
Screw terminal connection.
Technical information:
The ES 8 relay socket is designed for octal REL-OR with 2 PDT screw connections and can be mounted on the NS 35/7,5.
Rated voltage/current: 10 A/300 VAC (UL) or 12 A/300 VAC (CSA).
Separate contact circuits with a dielectric strength of 2500V.
Coil-contact circuits with a 2500V dielectric strength.
Buy currently uses Select Automation shop pricing and checkout.
Connection information:
Solid and stranded conductors have a minimum cross section of 0.5 mm².
Solid and stranded conductors have a maximum cross section of 2.5 mm².
Conductor cross-section AWG minimum: 26.
Conductor cross section AWG maximum 20.
Stripping length: 7 mm.
M3 screw thread.
General information:
38 mm in width.
65 mm in height.
Black in colour.
Operating temperature range: -25 °C to 85 °C.
