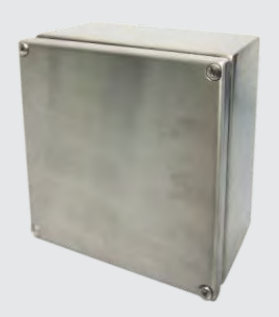

Stainless Steel Terminal Boxes EST0202012
SKU: EST0202012
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Elsteel Stainless Steel Terminal Box EST0202012 is engineered to deliver dependable and sturdy functionality in both indoor and outdoor settings.
Because it is made of premium stainless steel, it has exceptional resistance to corrosion and adverse weather.
Applications where hygienic practices and longevity are crucial, such those in the oil and gas, food & beverage, and pharmaceutical industries, are perfect for this terminal box.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Back corners are laser-marked for accurate mounting and drilling.
High resistance to corrosion, appropriate for harsh settings.
accessible in a range of sizes to meet diverse application requirements.
Durability: Long-term dependability due to high resistance to corrosion and environmental conditions.
Versatility: Applicable to a range of industries, both indoors and outdoors.
Installing the product is made easier by mounting studs and laser-marked corners.
Protection: Components inside are shielded from water and dust thanks to a high IP66 rating, which lowers the chance of failure and downtime.
Specifications:
Material: AISI 304L pre-grained stainless steel (AISI 316L available on request).
Dimensions: 200mm x 200mm x 120mm.
Protection Degree: IP66, ensuring protection against dust and powerful water jets.
Body Thickness: 1 mm.
Cover Thickness: 1.5 mm.
Construction: Folded and seam welded body.
Mounting: Four M6x13 studs for bottom profile/mounting plate fixation.
Gasket: Injected polyurethane gasket (silicone gasket for AISI 316L).
Standards Compliance:
UL 508A Listed; Type 4X, 12, 13.
cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 4X, 12, 13.
NEMA/EEMAC Type 4X, 12, 13.
IEC 62208.
KEMA, GOST, EAC.
