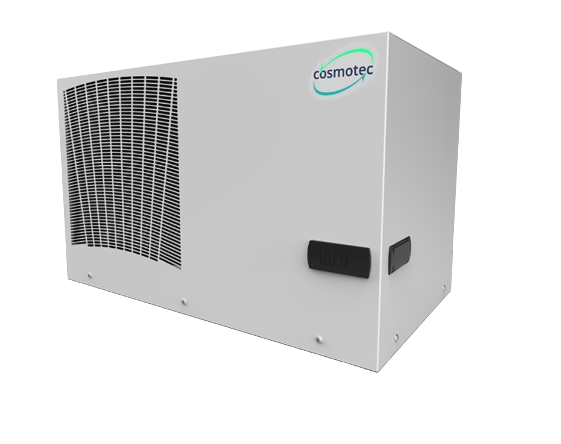

      Protherm top mounted panel air conditioners indoor, 330-5200 W Cooling

      SKU: ETE14002207000

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request TOP II Indoor: Industrial roof-mounted air conditioners make it possible to cool electrical cabinets even in scenarios where there is a limited amount of room, like in cabinet batteries or when precaution encourages that escape routes be kept free. Effective condensate management: The models' solutions provide the best possible condensate management. The return air path ensures that no condensation occurs on the cabinet's roof, and in addition to model ETE14 (1400W), the units are provided with a condensate sink that does not absorb electrical power and reduces or eliminates condensation. A level switch is included in the condensation tray of the air conditioner for the ETE06/09 models to regulate the condensate. Optimized airflows: Thanks to the long distance between the intake and supply of internal air, a short circuit of cold air can be avoided, eliminating the need for conveyors, and ensuring dependable operation. Furthermore, beginning with the ETE14 model, the regulation of room air flow allows air conditioners to be installed near each other, optimizing installation patterns.
      ETE14002207000
      Alternative image 1
      Main Features: Cooling Capacity: 330–5200 W. A condensate dissipator is available from ETE 14. Quick connections (excluding ETE03). Digital Thermostat ECB (excluding ETE03). General alarm contacts and remote control are standard (except for ETE03). Certifications: CE, UL recognized, EAC. Rated Voltage V, ~: 230.1. Nominal Frequency (Hz): 50/60. Cooling Capacity L35L35 W: 1400. Cooling Capacity L35L50 W: 1170. Power Consumption L35L50 W: 950. Current consumption CE, L35L35 A: 5,2. Start-up current A: 17. Minimum internal operating temperature (°C): +25. Maximum internal operating temperature (°C): +45. Minimum external operating temperature (°C): +20. Maximum external operating temperature: +55 °C. Internal circuit protection degree CE IP: 54. External sound pressure dB (A): 58. Height (A) mm: 450. Width (B) mm: 600. Depth (C) mm: 400. Weight kg: 48.
