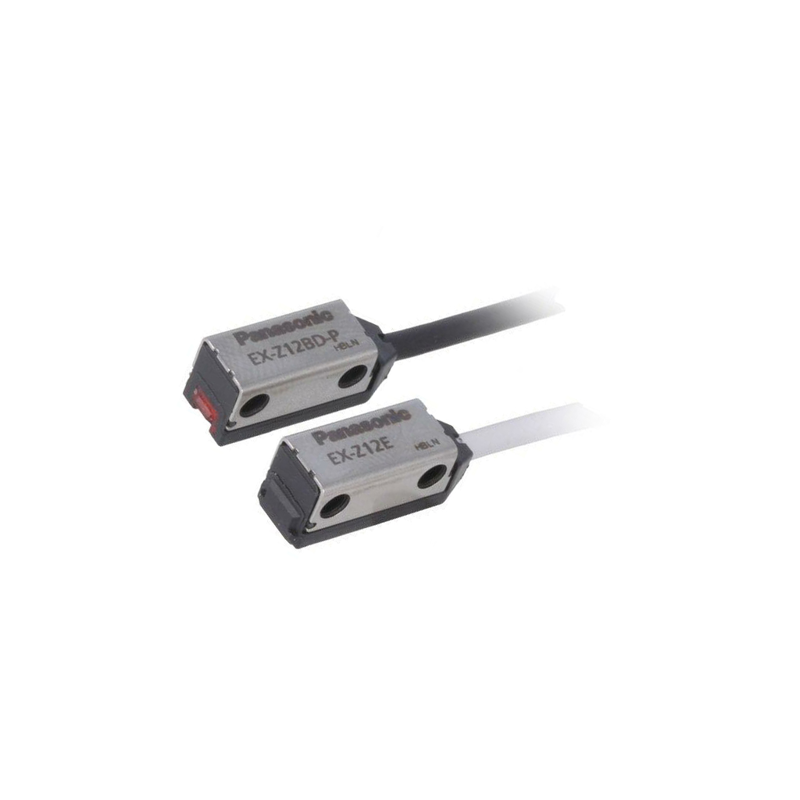

MINI PHOTO PNP 200mm T/BEAM D-ON
SKU: EX-Z12B-P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
World's smallest sensor, EX-Z series:
The EX-Z series' extraordinary thinness of 3mm was achieved by adopting a new semiconductor packaging process that does not rely on wire bonding.
The compact unit size enables sensor installation in tight spaces where before only a traditional fibre sensor head could be mounted.
In contrast to a fibre sensor, the EX-Z contains a built-in amplifier, which saves installation space.
Key features:
Easy to install.
Sensing very little objects.
The smallest laser sensor with an amplifier integrated in.
Excellent performance in an industrial environment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: EX-Z series.
DESCRIPTION: Ultra-minute photoelectric sensor (amplifier built-in).
SENSITIVITY ADJUSTMENT: No.
SENSING TYPE: Side sensing.
SUPPLY VOLTAGE: 12 - 24 VDC.
DIFFUSED: No.
RETRO-REFLECTIVE: No.
POLARISED RETRO: No.
THROUGH-BEAM: Yes.
SENSING DISTANCE (MM): 200.
PNP: Yes.
NPN: No.
LIGHT-ON: No.
DARK-ON: Yes.
CONNECTOR: Cable.
INDEX PROTECTION IP: IP67.
OUTPUT: PNP/NPN pen-collector transistor maximum 20mA.
LED INDICATION: Orange (operation) / green (stability).
DIMENSIONS (MM): (H) 14 x (W) 8 x (D) 3.
