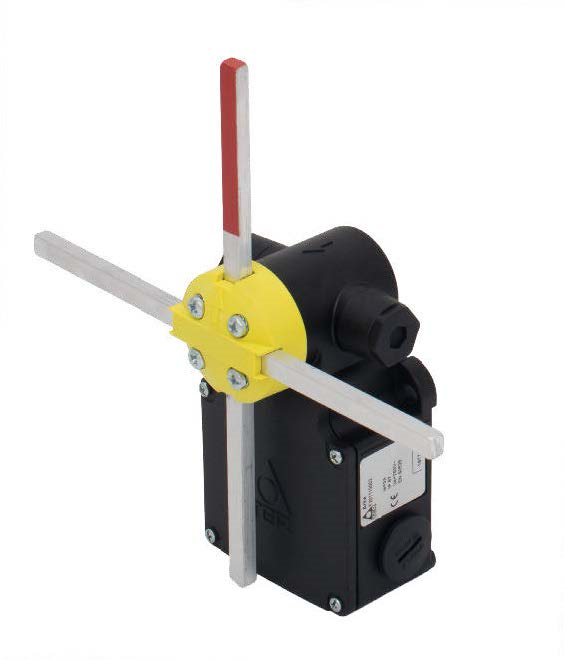

POSITION LIMIT SWITCH X ROD 4 POSITIONS (F201120001)
SKU: F201120001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Position limit switches:
Cross-position limit switches are designed to control the movement of complicated machine tools, hoists, and overhead traveling cranes.
Use in challenging operating conditions is made possible by the technical solutions adopted and material choices made, as well as by heads with various rod and movement kinds.
Buy currently uses Select Automation shop pricing and checkout.
Position limit switches in the Arke series features:
It is particularly ideal for use in demanding operating circumstances due to its strong temperature resistance.
Single rods with a 65° spring return movement or cross rods with 4 maintained positions every 90°.
Head and enclosure made of thermoplastic material (fiberglass-reinforced nylon)
10 A for thermal current
Rated operational current: 6A
Operating Temperature: -40°C to +80°C
Mechanical life: 5 × 1,000,000 operations
Cable entry: side or bottom (L or R); an M20 cable gland is included.
Supplied with 2 x (6 x 8 mm) aluminium rods (200 mm).
Positive opening of NC contacts for safety functions.
Specifications:
The Arke series.
X-rod actuators.
Positions: 60°, 4 (fixed).
Description: A limit switch that rotates.
Contact Configuration: 2 x NC (1 staggered).
IP65, IP66, and IP67 for index protection.
250 V is the rated operational voltage.
RATED OPERATIONAL CURRENT: 6 A.
Rated Thermal Current: 10 A.
UTILISATION CATEGORY: AC 15.
