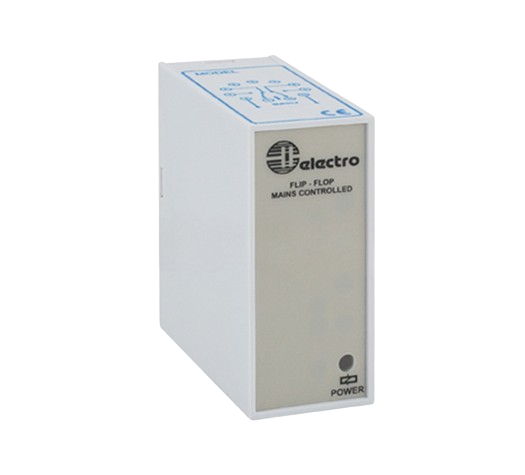

FLIP-FLOP RELAY 230VAC 230VAC, mains or pulse controlled with memory
SKU: F30230A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Flip-Flop Relay:
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
Flip-flop relays are used in a variety of applications, including distributing labour loads, and directing conveyors.
Before the supply is cut off, the main controlled flip-flop with memory must be activated for at least 30 seconds.
It must comply with a minimum 10-second delay to guarantee correct operation.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Output 10A SPDT.
Power supply ON LED.
Pulse controlled flip - flop with memory.
DESCRIPTION: Pulsed controlled with memory or mains controlled.
CONTACT: 8A SPDT.
RATED VOLTAGE: 250V.
MECHANICAL LIFE: 10x106 cycles.
PROTECTION INDEX IP: IP 20.
OPERATING TEMPERATURE: -10 to + 50°C.
STORAGE TEMPERATURE: -50 to + 85°C.
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64.
