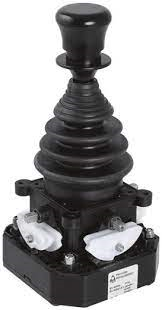

3-1 360 JOYSTICK CONTROLLER
SKU: F661AL0331
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Details:
Hercules series.
STEPS IN THE Y-AXIS: 3.
STEPS IN THE X-AXIS: 1.
KNOB LEVER TYPE: Dead Man Switch, a mechanically interlocked safety feature.
Summary: A joystick control switch with a micro switch board.
Category of Utilization: AC 15.
INDUCTIVE LOADS: 0.5A at 250 VAC, 1A at 30 VDC, and 1A at 125 VAC.
RESISTIVE LOADS: 2A 250 VAC, 3A 30 VDC, and 3A 125 VAC.
IEC/EN 60204-1, 60947-1, 60947-5-1, and 61000-6-2/3 are the standards of conformity.
Buy currently uses Select Automation shop pricing and checkout.
Joystick control switches for the HERCULES series:
The all-new HERCULES joystick controller is designed specifically for use in challenging conditions.
Longer mechanical life and dependability are ensured by careful consideration of design, ergonomics, and operation accuracy.
offering cross- or 360-degree movement at up to five speeds per direction.
IP65 (enclosure-dependent) is the level of IP protection.
Ambient temperature: operational -25°C/+70°C.
5 x 1 000 000 operations = mechanical life.
Screw-type terminals are used for connections.
Category of utilization: AC 15.
Compliance with IEC/EN 60204-1, 60947-1, 60947-5-1, and 61000-6-2/3 standards.
Hercules, Micro Switchboard Version:
Standard version with mounted extremely dependable micro switches and a switch board.
Mechanically dead man safety interlock and 1CO contact on a knob-type lever.
Inductive loads: 0.5A 250 VAC, 1A 30 VDC, and 1A 125 VAC.
3A 125 VAC, 2A 250 VAC, and 3A 30 VDC are the resistive loads.
