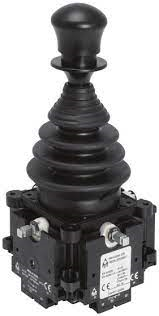

4-4 360 JOYSTICK CONTROLLER - HERCULES CK series
SKU: F662AL0444
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Details:
The Hercules CK series.
STEPS IN THE Y-AXIS: 4.
STEPS IN THE X-AXIS: 4.
Type of Knob Lever: Mechanical interlock, as well as 2 x NC contacts.
SUMMARY Independent switches on a joystick-controlled switch.
UTILIZATION CLASSIFICATION AC 15.
Rated current: 3A at 250 Vac.
IEC/EN 60204-1, 60947-1, 60947-5-1, and 61000-6-2/3 are the standards of conformity.
Buy currently uses Select Automation shop pricing and checkout.
Joystick control switches (HERCULES series):
The new HERCULES joystick controller features a completely redesigned design for usage in tough settings.
Longer mechanical life and dependability are ensured by careful consideration of design, ergonomics, and operating correctness.
offering cross- or 360-degree movement at up to five speeds per direction.
IP65 (enclosure-dependent) is the level of IP protection.
Ambient temperature: -25°C to +70°C Operational.
5 x 1 000 000 operations = mechanical life.
The connections are screw-type terminals.
AC 15 is the utilization category.
Standards conformance: IEC/EN 60204-1, 60947-1, 60947-5-1, 61000-6-2/3.
Model with independent switches (Hercules-CK):
Knob-style lever with mechanical interlock and 2 x NC contacts.
Rated current: 250 VAC at 3 A.
