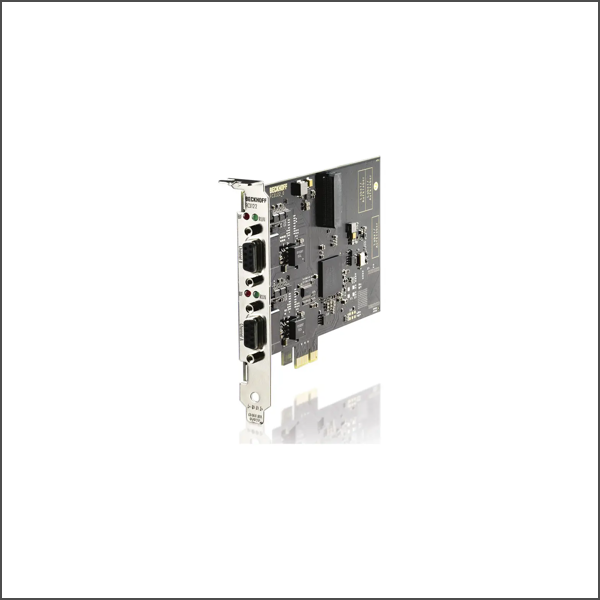

PROFIBUS DP (standard), PROFIBUS DP-V1 FC3122
SKU: FC3122
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Fieldbus: PROFIBUS DP (standard), PROFIBUS DP-V1
PC interface: PCI Express x1
Number of fieldbus channels: 2
Data transfer rates: 9.6 kbaud…12 Mbaud
Bus interface: 2 x D-sub socket, 9-pin, galvanically decoupled
Hardware diagnostics: 2 LEDs per channel
Bit width in the process image: total max.: 30.5 kbyte input and output data
NOVRAM: –
Dimensions: approx. 100 mm x 130 mm
Operating temperature: 0…+55 °C
Driver: TwinCAT 2.11 R3 and higher
Buy currently uses Select Automation shop pricing and checkout.
PROFIBUS DP and DP-V1: the PROFIBUS PCIe (PCI Express) Fieldbus Cards from Beckhoff can master the following PROFIBUS features:
master, slave and PROFIBUS monitor up to 12 Mbit/s
powerful parameter and diagnostics interfaces
the error management for each bus user is freely configurable
it is possible to read the bus configuration and automatically assign the “GSE” files
In TwinCAT, all functions are conveniently available. Other applications also benefit from the diverse features: general drivers for different Windows versions and convenient configuration tools are included in the TwinCAT I/O software package. High-level language programs use the DLL, Visual Basic applications the ActiveX interface. Applications with OPC interface can access process data and parameters via an OPC server.
