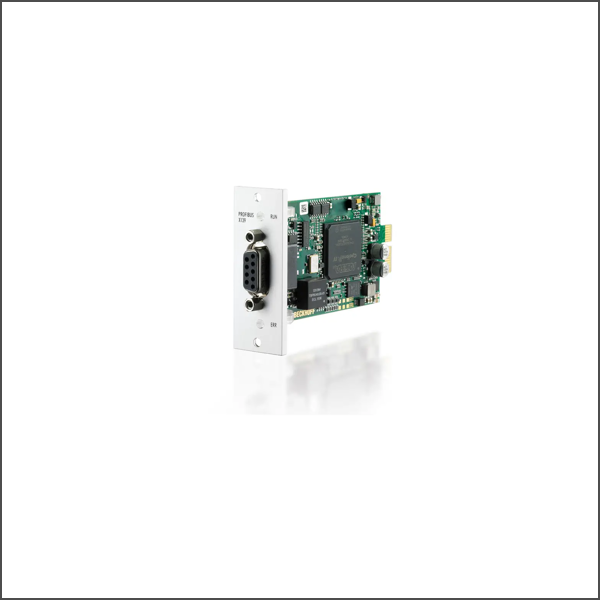

PROFIBUS DP (standard), PROFIBUS DP-V1 FC3161-0002
SKU: FC3161-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
PC interface: PCI Express for Beckhoff PCIe module slots
Number of fieldbus channels: 1
Data transfer rates: 9.6 kbaud…12 Mbaud
Bus interface: 1 x D-sub socket, 9-pin, galvanically decoupled
Hardware diagnostics: 2 LEDs per channel
NOVRAM: 512 kB
Driver: TwinCAT 2.11 R3 and higher
Buy currently uses Select Automation shop pricing and checkout.
Beckhoff PCIe modules are highly integrated PCI Express plug-in cards and follow the trend towards ever smaller PCs. The function of PC plug-in cards is integrated in a compact format that is suitable for harsh industrial environments.
The PCIe modules for Beckhoff Industrial PCs allow the use of a PROFIBUS master without NOVRAM (FC3161-0000) or with 512 kB NOVRAM for easy data backup (FC3161-0002).
In TwinCAT, PROFIBUS and NOVRAM are available. Other applications also benefit from the diverse features: general PROFIBUS drivers for different Windows versions and convenient configuration tools are included in the TwinCAT I/O software package. High-level language programs use the DLL, Visual Basic applications the ActiveX interface. Applications with OPC interface can access process data and parameters via an OPC server.
