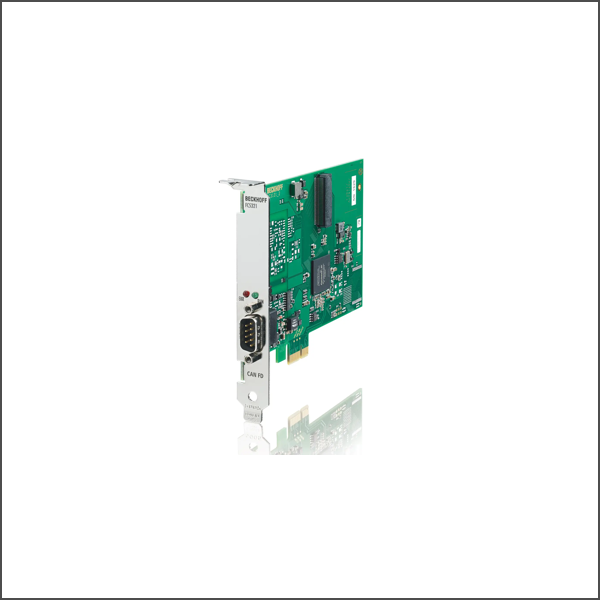

CAN FD FC5321
SKU: FC5321
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The FC532x PC plug-in cards connect the PC (PCI express) to a CAN FD network. CAN FD is a further development of the very common CAN hardware. The advantage of CAN FD is that up to 64 bytes of data can be sent and received in one CAN frame by operating the data range with a higher baud rate. The option is also available to operate the FC532x CAN FD cards in the classic CAN mode of the FC512x CANopen card. The CAN FD functionality can be operated via the CAN interface and enables layer-2 access. If the card is operated as a CANopen master/slave, only the classic CAN mode can be used.
Buy currently uses Select Automation shop pricing and checkout.
Fieldbus: CAN FD (optionally CANopen with classic CAN, see FC512x)
PC interface: PCI Express x1
Number of fieldbus channels: 1
Data transfer rates: max. 5…8 Mbit/s in data phase, max. 1 Mbit/s in arbitration phase
Bus interface: 1 x D-sub socket, 9-pin, galvanically decoupled
Termination resistor: switchable
Hardware diagnostics: 2 LEDs per channel
Bit width in the process image: total max.: 4 kbyte input and output data
Dimensions: approx. 100 mm x 130 mm
Operating temperature: 0…+55 °C
Driver: TwinCAT 3.1
