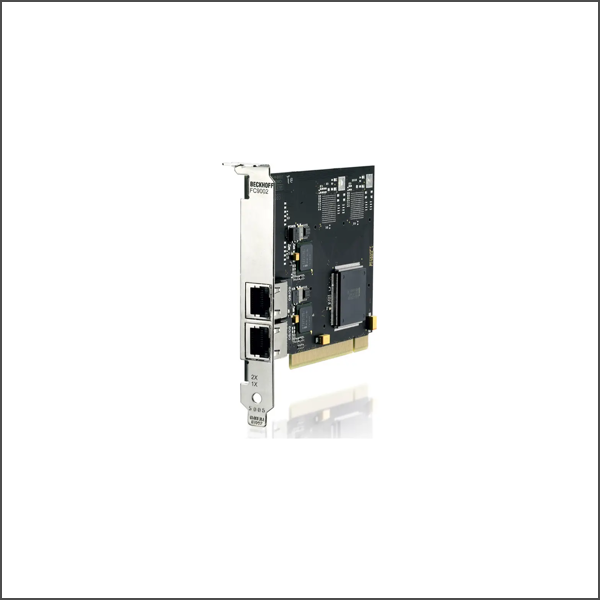

Ethernet card FC9002
SKU: FC9002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Ethernet network cards can be used in office and automation networks and offer the following benefits:
plug-and-play interface
10/100 Mbit/s, full duplex
maximum performance through hardware-integrated checksum creation and verification
The hardware side supports Quality of Service (QoS) through prioritized multiple queues.
The cards (or individual channels) can also be operated with TwinCAT drivers – and therefore in real-time.
Buy currently uses Select Automation shop pricing and checkout.
Fieldbus: all Ethernet (IEEE 802.3) based protocols
PC interface: PCI
Number of Ethernet channels: 2 x RJ45
Data transfer rates: 10/100 Mbit/s
Ethernet interface: 100BASE-T Ethernet
Cable length: up to 100 m
Standard drivers: standard drivers or Beckhoff driver for different Windows versions (available from Beckhoff website)
Real-time drivers: TwinCAT drivers for EtherCAT/real-time Ethernet. Drivers can be selected separately for each channel.
Hardware diagnostics: 2 LEDs per channel, activity, link
Dimensions: approx. 95 mm x 125 mm
Operating temperature: 0…+55 °C
