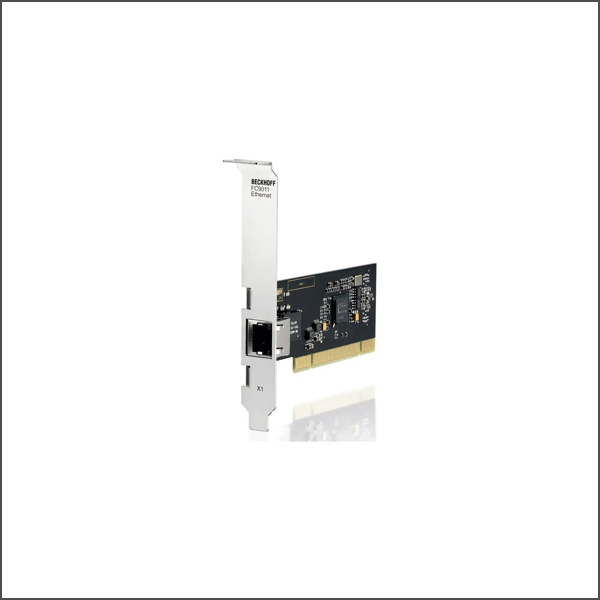

Gigabit Ethernet card FC9011
SKU: FC9011
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Ethernet network cards can be used in office and automation networks and offer the following benefits:
plug-and-play interface
10/100/1000 Mbit/s, full duplex
maximum performance through hardware-integrated checksum creation and verification
The hardware side supports Quality of Service (QoS) through prioritized multiple queues.
Wake on LAN
Boot from LAN (PXE)
The cards (or individual channels) can also be operated with TwinCAT drivers – and therefore in real-time.
Buy currently uses Select Automation shop pricing and checkout.
Fieldbus: all Ethernet (IEEE 802.3) based protocols
PC interface: PCI
Number of Ethernet channels: 1 x RJ45
Data transfer rates: 10/100/1000 Mbit/s
Ethernet interface: 100BASE-T/1000BASE-T Ethernet
Cable length: up to 100 m
Standard drivers: standard drivers or Beckhoff driver for different Windows versions (available from Beckhoff website)
Real-time drivers: TwinCAT drivers for EtherCAT/real-time Ethernet. Drivers can be selected separately for each channel.
Hardware diagnostics: 2 LEDs per channel, activity, link
Dimensions: approx. 51 mm x 120 mm
Operating temperature: 0…+55 °C
