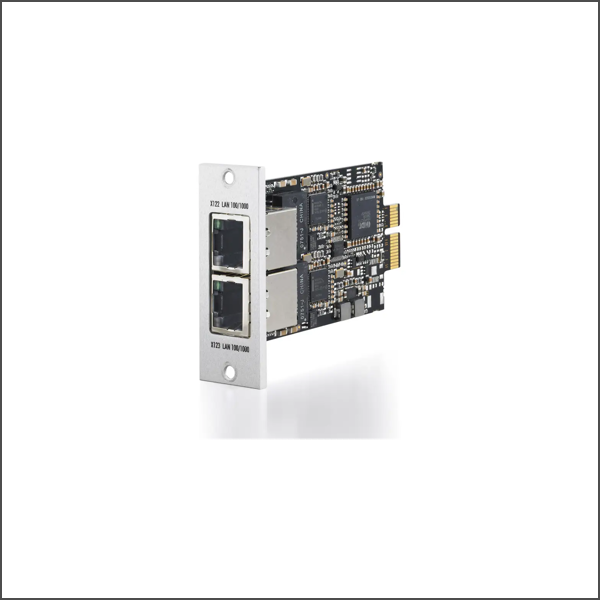

Gigabit Ethernet FC9062
SKU: FC9062
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Fieldbus: all Ethernet (IEEE 802.3) based protocols
PC interface: PCI Express for Beckhoff PCIe module slots
Number of Ethernet channels: 2 x RJ45
Data transfer rates: 100/1000 Mbit/s
Ethernet interface: 100BASE-T/1000BASE-T Ethernet
Cable length: up to 100 m
Standard drivers: standard drivers or Beckhoff driver for different Windows versions (available from Beckhoff website)
Real-time drivers: TwinCAT drivers for EtherCAT/real-time Ethernet. Drivers can be selected separately for each channel.
Hardware diagnostics: 2 LEDs per channel, activity, link
Dimensions: PCIe module
Operating temperature: –
Buy currently uses Select Automation shop pricing and checkout.
The Ethernet PCI network cards can be used in office and automation networks and offer the following benefits:
• plug-and-play interface
• 100/1000 Mbit/s, full duplex
• maximum performance through hardware-integrated checksum creation and verification
• The hardware side supports Quality of Service (QoS) through prioritized multiple queues.
The cards (or individual channels) can also be operated with TwinCAT drivers – and therefore in real-time.
At PCs with one or two free PCIe module slots the FC9062 can be retrofitted on site.
