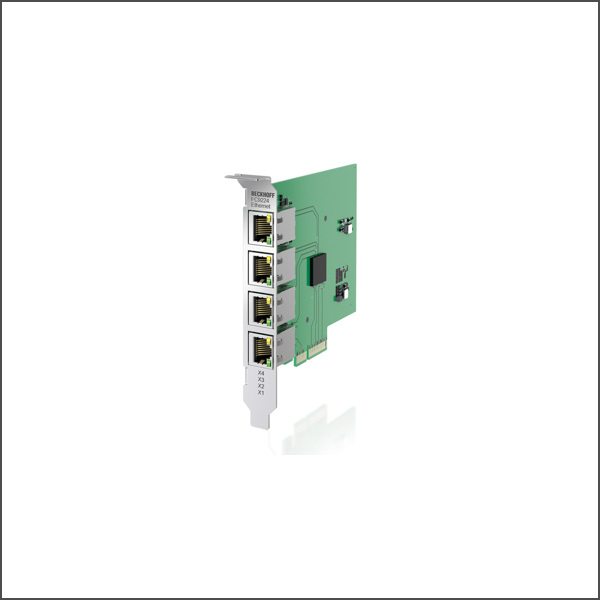

Infrastructure FC9224
SKU: FC9224
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The FC9224 enables the use of 2.5 Gigabit infrastructure in existing and new applications. With its industrial grade and long term available components the PCIe card is ideally suited for automation projects.
plug-and-play interface
100/1000/2500 Mbit/s, full duplex
The cards (or individual channels) can also be operated with TwinCAT drivers – and therefore in real-time.
Buy currently uses Select Automation shop pricing and checkout.
Fieldbus: all Ethernet (IEEE 802.3) based protocols
PC interface: PCI Express x4
Number of Ethernet channels: 4 x RJ45
Data transfer rates: 100/1000/2500 Mbit/s
Ethernet interface: 100BASE-T/1000BASE-T/2500BASE-T Ethernet
Cable length: up to 100 m
Standard drivers: standard drivers or Beckhoff driver for different Windows versions (available from Beckhoff website)
Real-time drivers: TwinCAT drivers for EtherCAT/real-time Ethernet. Drivers can be selected separately for each channel.
Hardware diagnostics: 2 LEDs per channel, activity, link
Dimensions: approx. 116 mm x 98 mm
Operating temperature: 0…+55 °C
