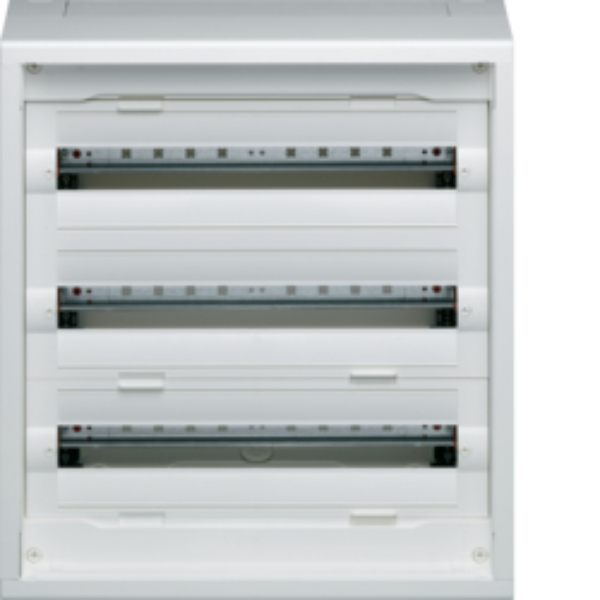

72W VEGA-D SURFACE D/BOARD
SKU: FD32DN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
High-capacity distribution board for surface mounting, Hager 72W VEGA-D SURFACE D/BOARD (FD32DN) is perfect for both home and business electrical systems.
This enclosure, which is a member of the New VegaD series, is designed to offer an orderly and dependable method of controlling electrical circuits.
Long-lasting performance and safety are guaranteed by the FD32DN's sturdy construction and user-friendly design.
It is appropriate for intricate electrical configurations because it can hold up to 72 modules.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Code: FD32DN.
EAN: 3250612548279.
Compatibility: Hager VegaD enclosures.
Material: Plastic/metal with powder-coated surface treatment.
Colour: Pure white (RAL 9010).
Installation: Surface mounting.
Dimensions:
Depth: 193 mm.
Height: 600 mm.
Width: 550 mm.
Width in Division Units: 24.
Number of Modules: 72.
Number of Rows: 3.
Quantity of Rails: 3.
Main Electrical Features:
Nominal Voltage: 230/400 V.
Rated Current: 160 A.
Cover and Door:
Cover Type: With notch.
Door Locking: Without.
Transparent Cover or Door: No.
Connection:
Number of Conduit Inlets: 4.
Number of Openings for Flange Plates: 2.
Compliance:
REACH Conform: No.
RoHS Conform: Yes.
Halogen Free: No.
Protection Index:
IP30/IK07 (without door).
IP41/IK08 (with door).
Packaging: 1 piece per package.
