120 WAY SURFACE MOUNTING DISTRIBUTION BOARD 2x EMPTY ROWS
SKU: FD52AN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

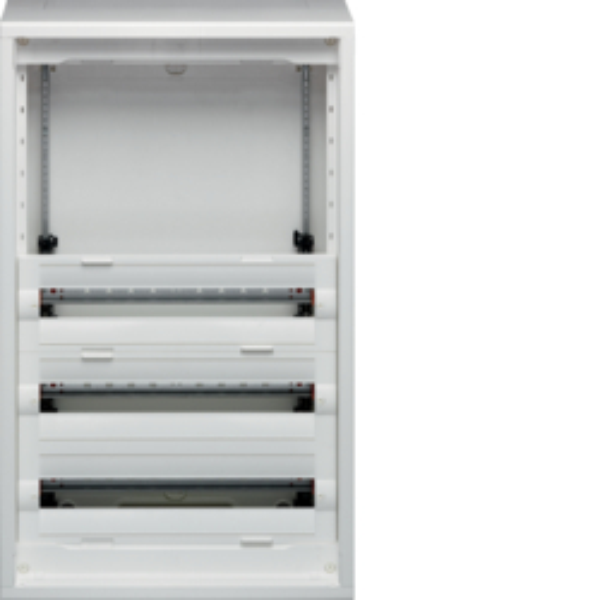

The NewVegaD series of surface-mounted distribution boards, including the Hager FD52AN, is made to offer dependable and well-organized solutions for electrical installations.
This enclosure provides a reliable and effective method of managing electrical circuits and is appropriate for both home and commercial applications.
Durable performance and safety are guaranteed by the FD52AN's premium build and user-friendly design. With its 120-module capacity, it's perfect for intricate electrical configurations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Code: FD52AN.
EAN: 3250612548354.
Compatibility: Hager VegaD enclosures.
Material: Plastic/metal with powder-coated surface treatment.
Colour: Pure white (RAL 9010).
Installation: Surface mounting.
Dimensions:
Depth: 193 mm.
Height: 900 mm.
Width: 550 mm.
Width in Division Units: 24.
Number of Modules: 120.
Number of Rows: 5.
Quantity of Rails: 3.
Main Electrical Features:
Nominal Voltage: 230/400 V.
Rated Current: 160 A.
Cover and Door:
Cover Type: With notch.
Door Locking: Without
Transparent Cover or Door: No.
Connection:
Number of Conduit Inlets: 4.
Number of Openings for Flange Plates: 2.
Compliance:
REACH Conform: No.
RoHS Conform: Yes.
Halogen Free: No.
Protection Index:
IP30/IK07 (without door).
IP41/IK08 (with door).
Packaging: 1 piece per package.
